K1848 N-Channel 60V MOSFET

VBsemi

Description

K1848-VB K1848-VB Datasheet N-Channel 60-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.075 at VGS = 10 V 60 0.086 at VGS =.

📥 Download Datasheet

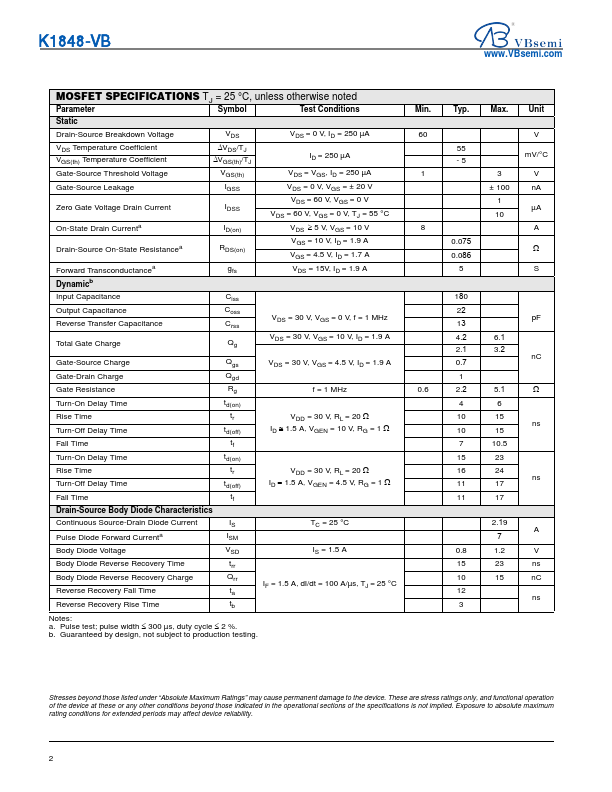

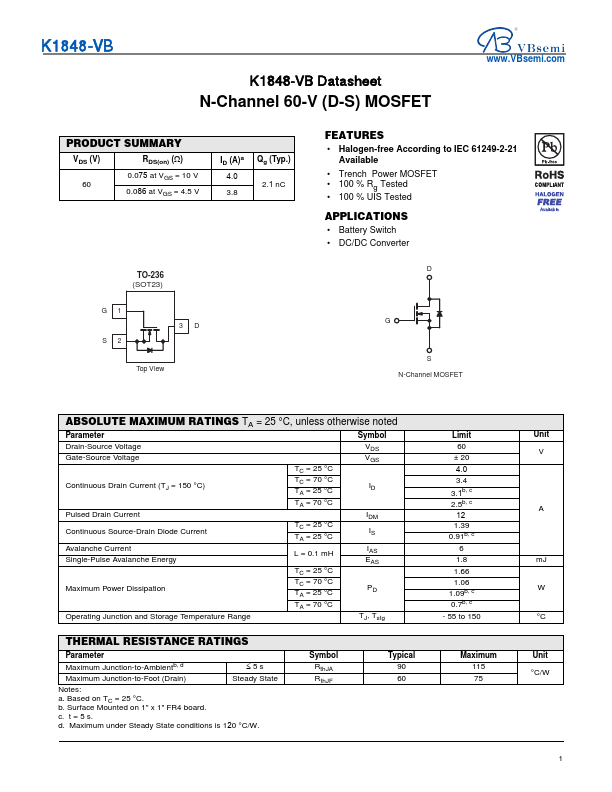

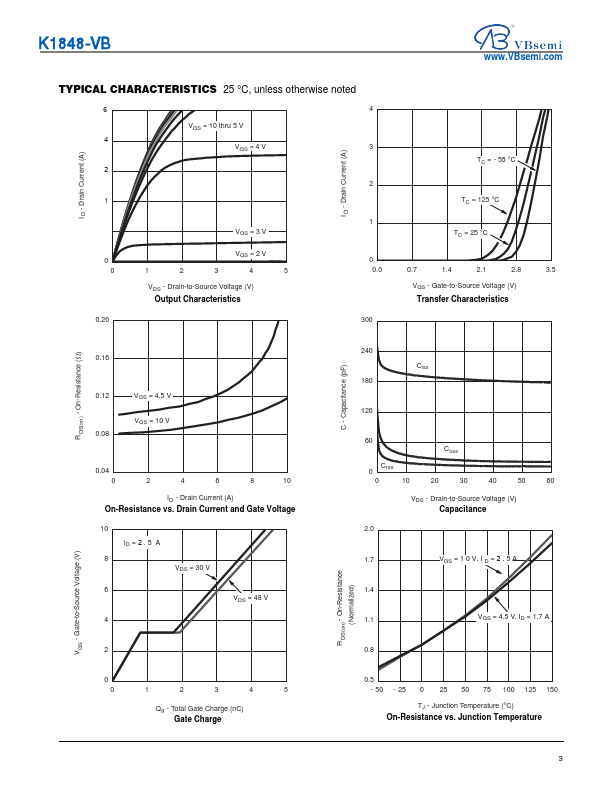

K1848 Datasheet Preview — Preview of K1848 PDF

Datasheet Specifications

Part number: K1848
Manufacturer: VBsemi
File Size: 256.14 KB
Datasheet: K1848-VBsemi.pdf
Description: N-Channel 60V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Available
* Trench Power MOSFET
* 100 % Rg Tested

Applications

* Battery Switch
* DC/DC Converter D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) VDS VGS TC = 25 °C TC = 70 °C TA = 25 °C ID TA = 70 °C Pul
