K1905 N-Channel 100V MOSFET

VBsemi

Description

K1905-VB K1905-VB Datasheet N-Channel 100-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 100 VGS = 10 V Qg (Max.) (nC) 72 Q.

📥 Download Datasheet

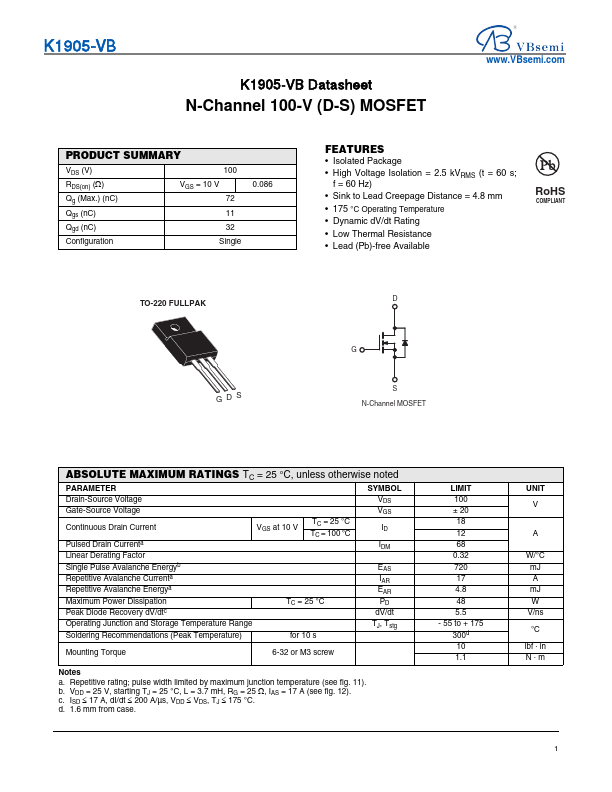

K1905 Datasheet Preview — Preview of K1905 PDF

Datasheet Specifications

Part number: K1905
Manufacturer: VBsemi
File Size: 1.10 MB
Datasheet: K1905-VBsemi.pdf
Description: N-Channel 100V MOSFET

Features

* Isolated Package
* High Voltage Isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz)
* Sink to Lead Creepage Distance = 4.8 mm
* 175 °C Operating Temperature
* Dynamic dV/dt Rating
* Low Thermal Resistance
* Lead (Pb)-free Available RoHS COMPLIANT T
