K8N80 - Power MOSFET

Datasheet Summary

Features

  • Low figure-of-merit (FOM) Ron x Qg.
  • Low input capacitance (Ciss).
  • Reduced switching and conduction losses.
  • Ultra low gate charge (Qg).
  • Avalanche energy rated (UIS).

📥 Download Datasheet

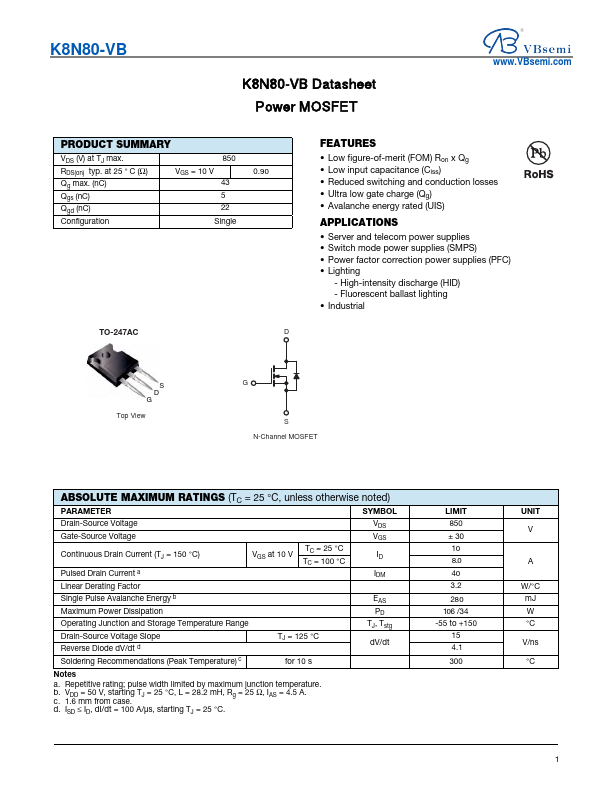

Datasheet preview – K8N80

Datasheet Details

Part number K8N80
Manufacturer VBsemi
File Size 282.32 KB
Description Power MOSFET
Datasheet download datasheet K8N80 Datasheet

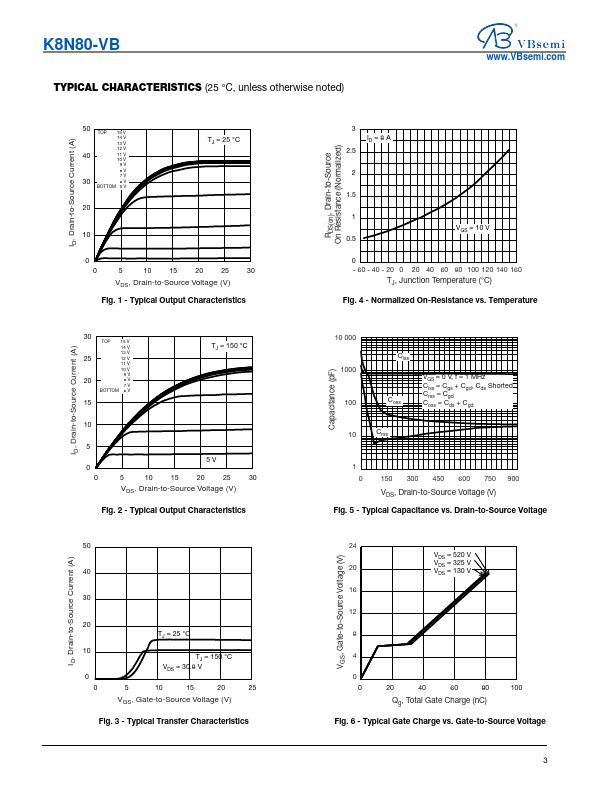

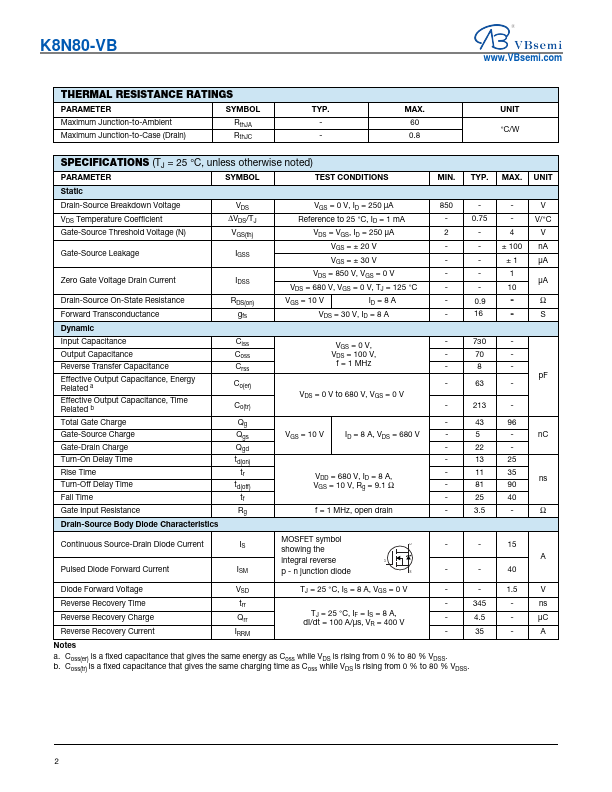

Additional preview pages of the K8N80 datasheet.

📁 Similar Datasheet

Other Datasheets by VBsemi

    Full PDF Text Transcription

    Click to expand full text
    K8N80-VB K8N80-VB Datasheet Power MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) at TJ max. RDS(on) typ. at 25 ° C (Ω) Qg max. (nC) Qgs (nC) Qgd (nC) Configuration 850 VGS = 10 V 43 5 22 Single 0.
