LB3034 N-Channel 40V MOSFET

VBsemi

Description

LB3034-VB PRODUCT SUMMARY VDS (V) RDS(on) (Ω) at VGS = 10 V ID (A) Configuration Qg (nC) TO-220AB LB3034-VB Datasheet N-Channel 40-V (D-S) MOSFET 40.

📥 Download Datasheet

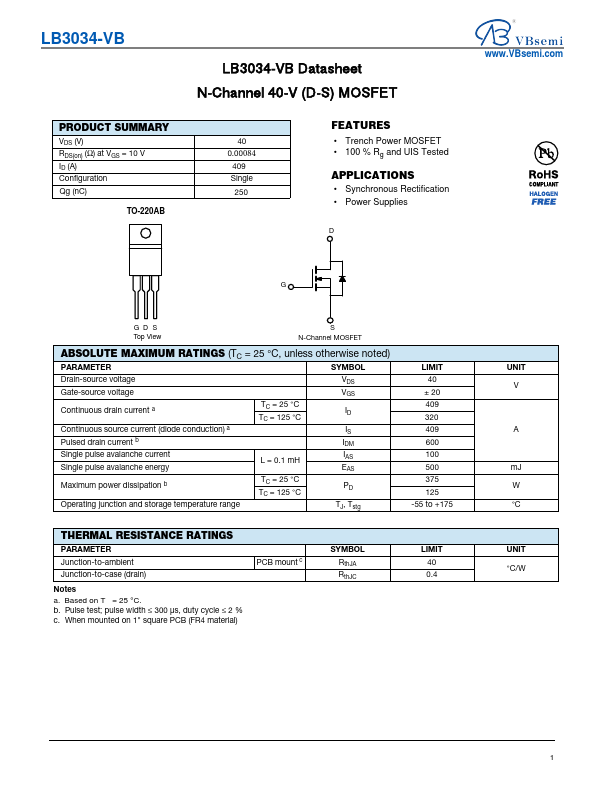

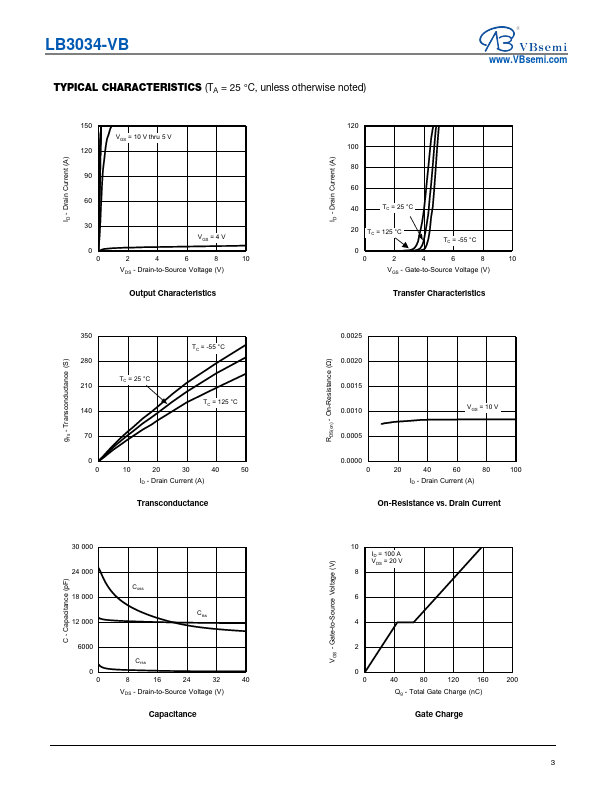

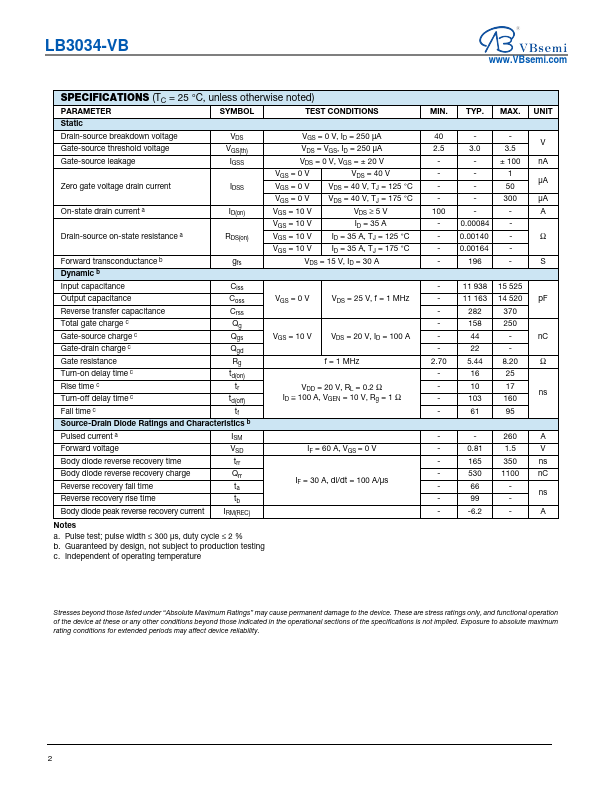

LB3034 Datasheet Preview — Preview of LB3034 PDF

Datasheet Specifications

Part number: LB3034
Manufacturer: VBsemi
File Size: 265.08 KB
Datasheet: LB3034-VBsemi.pdf
Description: N-Channel 40V MOSFET

Features

* Trench Power MOSFET

Applications

* Synchronous Rectification
* Power Supplies D www. VBsemi. com G GDS Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) PARAMETER SYMBOL Drain-source voltage Gate-source voltage Continuous drain current a Continuous source current (diode
