MC2412 Datasheet - VBsemi

MC2412, Dual N-Channel 30V MOSFET

MC2412-VB MC2412-VB Datasheet Dual N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.022 at VGS = 10 V 30 0.026 a

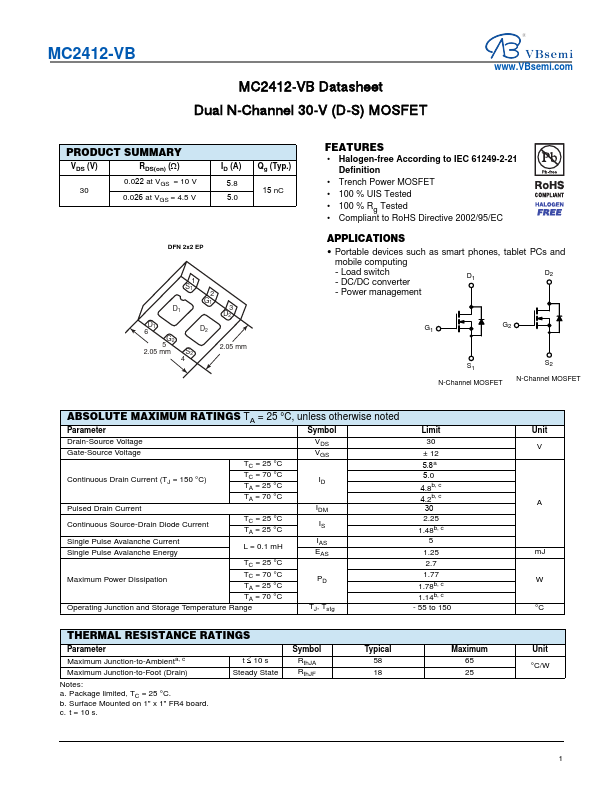

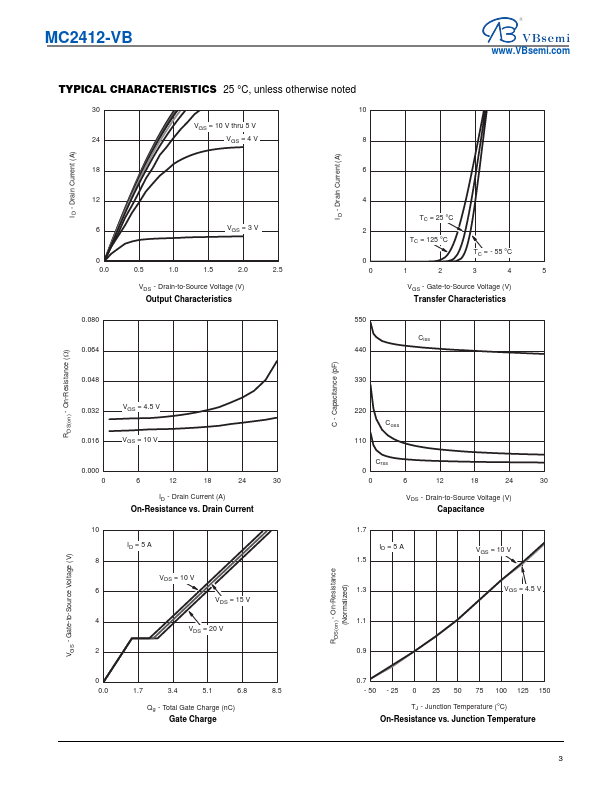

Datasheet Preview Page 1 MC2412 Datasheet Preview Page 2 Datasheet Preview Page 3

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % UIS Tested
* 100 % Rg Tested

Applications

* Portable devices such as smart phones, tablet PCs and mobile computing - Load switch - DC/DC converter D1 D2 - Power management G1 G2 S1 N-Channel MOSFET S2 N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage

MC2412-VBsemi.pdf

Preview of MC2412 PDF

Datasheet Details

Part number:

MC2412

Manufacturer:

VBsemi

File Size:

301.49 KB

Description:

Dual n-channel 30v mosfet.
