N6908 Dual N-Channel 30V MOSFET

VBsemi

N6908 Description

N6908-VB N6908-VB Datasheet Dual N-Channel 30V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.0034 at VGS = 10 V 30 0.0043 at.

N6908 Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % UIS Tested
* 100 % Rg Tested

N6908 Applications

* Set Top Box
* Low Current DC/DC PHASE Top View Bottom View ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current TC = 25 °C TC = 70 °C TA = 25 °C TA

📥 Download Datasheet

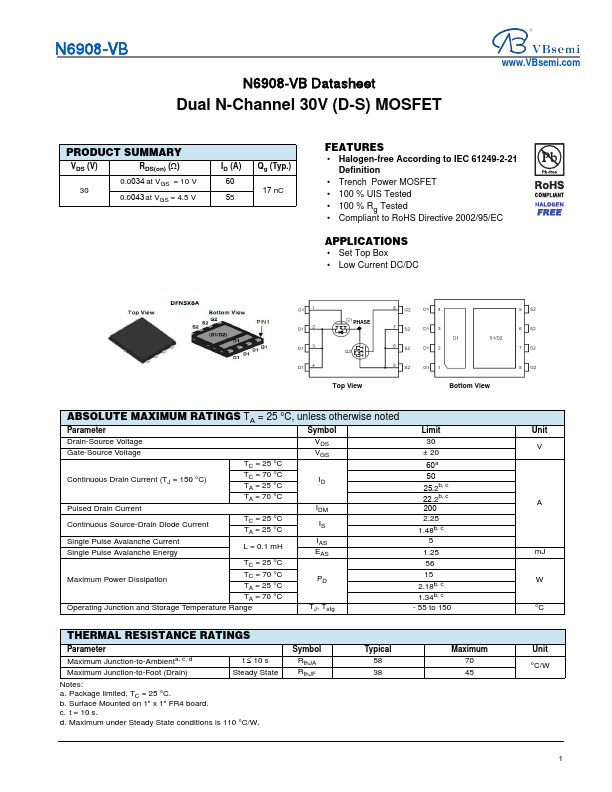

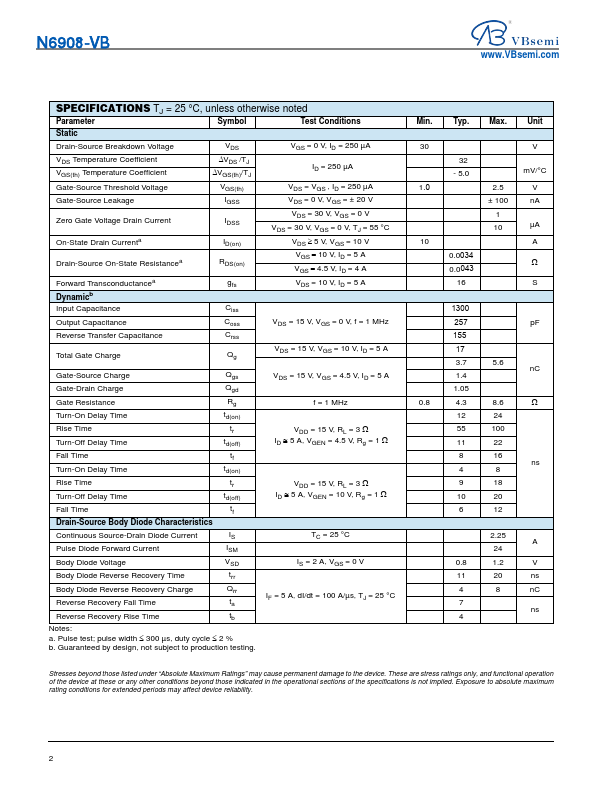

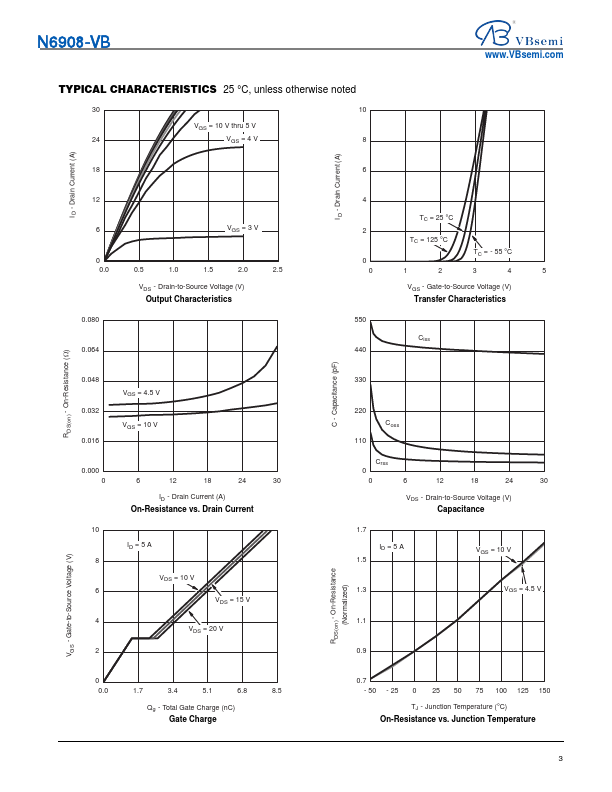

N6908 Datasheet Preview — Preview of N6908 PDF

Datasheet Details

Part number: N6908
Manufacturer: VBsemi
File Size: 312.29 KB
Datasheet: N6908-VBsemi.pdf
Description: Dual N-Channel 30V MOSFET
