N7240 N-Channel 40V MOSFET

VBsemi

Description

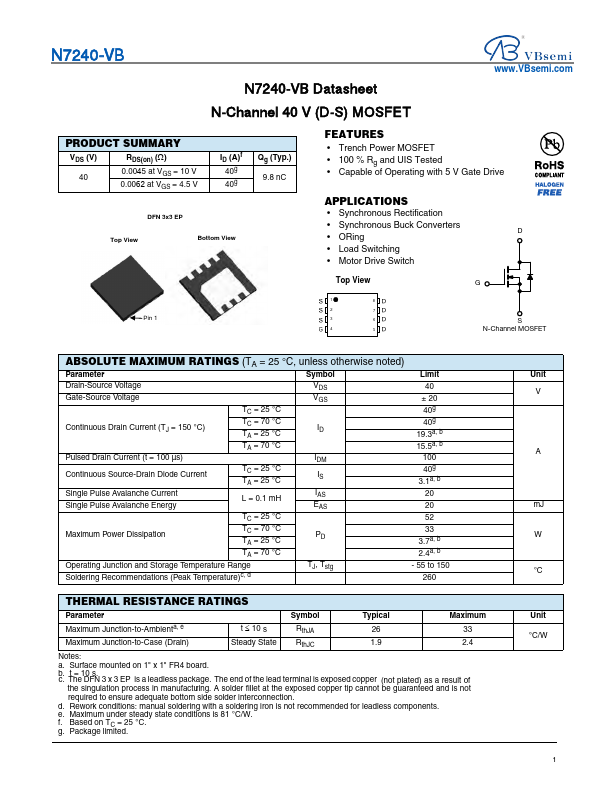

N7240-VB N7240-VB Datasheet www.VBsemi.com N-Channel 40 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) 40 RDS(on) (Ω) 0.0045 at VGS = 10 V 0.0062 at VGS.

📥 Download Datasheet

N7240 Datasheet Preview — Preview of N7240 PDF

Datasheet Specifications

Part number: N7240
Manufacturer: VBsemi
File Size: 272.03 KB
Datasheet: N7240-VBsemi.pdf
Description: N-Channel 40V MOSFET

Features

* Trench Power MOSFET
* 100 % Rg and UIS Tested

Applications

* Synchronous Rectification
* Synchronous Buck Converters D
* ORing
* Load Switching
* Motor Drive Switch Top View G Pin 1 1 8 2 7 3 6 4 5 S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-S
