N7408 N-Channel 30V MOSFET

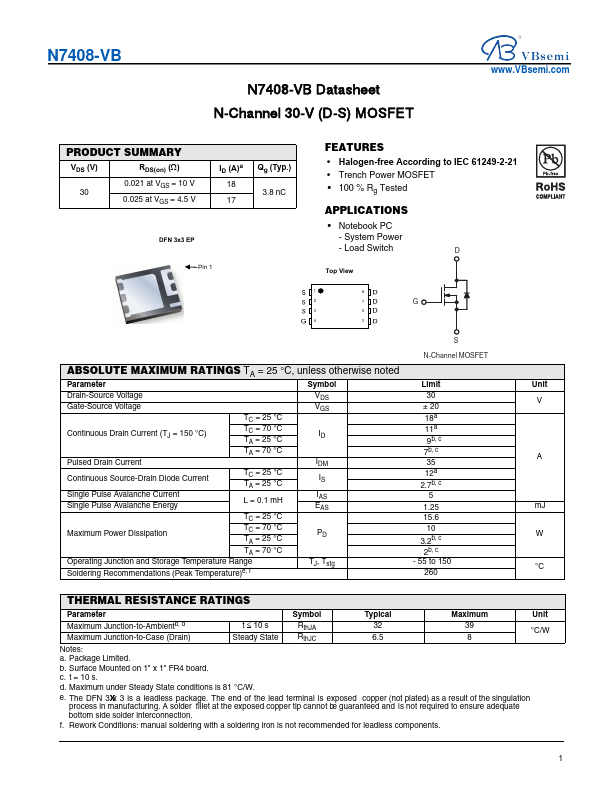

📥 Download Datasheet  Datasheet Preview Page 1

Description

N7408-VB N7408-VB Datasheet N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.021 at VGS = 10 V 30 0.025 at VGS =.

📥 Download Datasheet

Preview of N7408 PDF

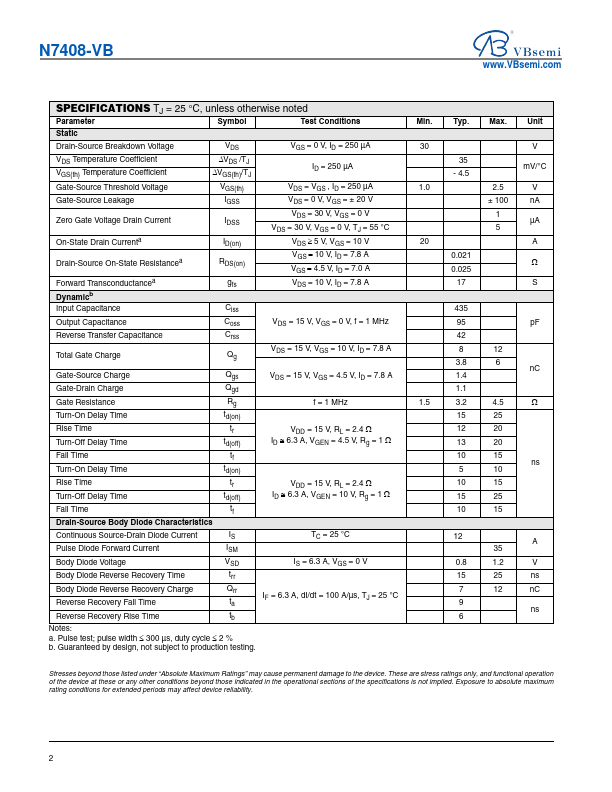

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
N7408
Manufacturer
VBsemi
File Size
339.26 KB
Datasheet
N7408-VBsemi.pdf
Description
N-Channel 30V MOSFET

Features

* Halogen-free According to IEC 61249-2-21
* Trench Power MOSFET

Applications

* Notebook PC - System Power - Load Switch D Top View 1 8 2 7 G 3 6 4 5 S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 30 V VGS ± 20 TC = 25 °C 18a Continuou
