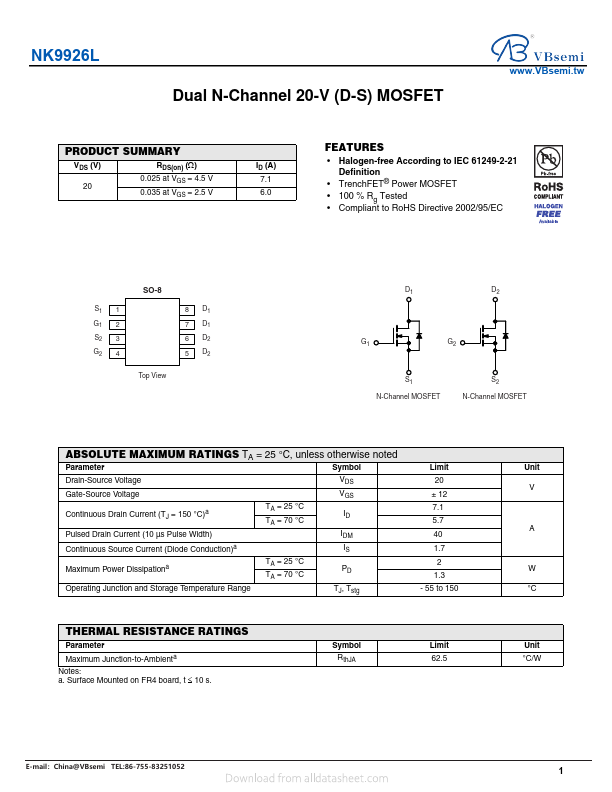

NK9926L - 20V Dual N-Channel MOSFET

Product Overview

VBsemi

📥 Download Datasheet

NK9926L 20V Dual N-Channel MOSFET by VBsemi - Datasheet Preview — Datasheet preview – NK9926L

Datasheet Details

Part number	NK9926L
Manufacturer	VBsemi
File Size	878.67 KB
Description	20V Dual N-Channel MOSFET
Datasheet	NK9926L Datasheet
Additional preview pages of the NK9926L datasheet.

Product details

Features

Halogen-free According to IEC 61249-2-21 Definition.
TrenchFET® Power MOSFET.
100 % Rg Tested.
Compliant to RoHS Directive 2002/95/EC S1 1 G1 2 S2 3 G2 4 SO-8 Top View 8 D1 7 D1 6 D2 5 D2 D1 D2 G1 G2 S1 N-Channel MOSFET S2 N-Channel MOSFET.
