NP05N50CF Datasheet - VBsemi

NP05N50CF, N-Channel 650V Power MOSFET

NP05N50CF-VB NP05N50CF-VB Datasheet /$IBOOFM7 %4 Power MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) at TJ max.RDS(on) at 25 °C (Ω) Qg max..

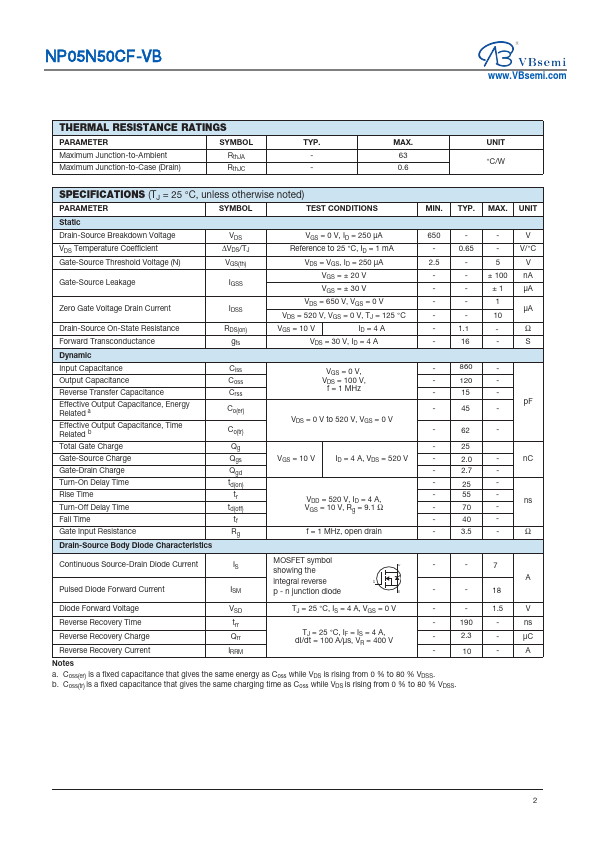

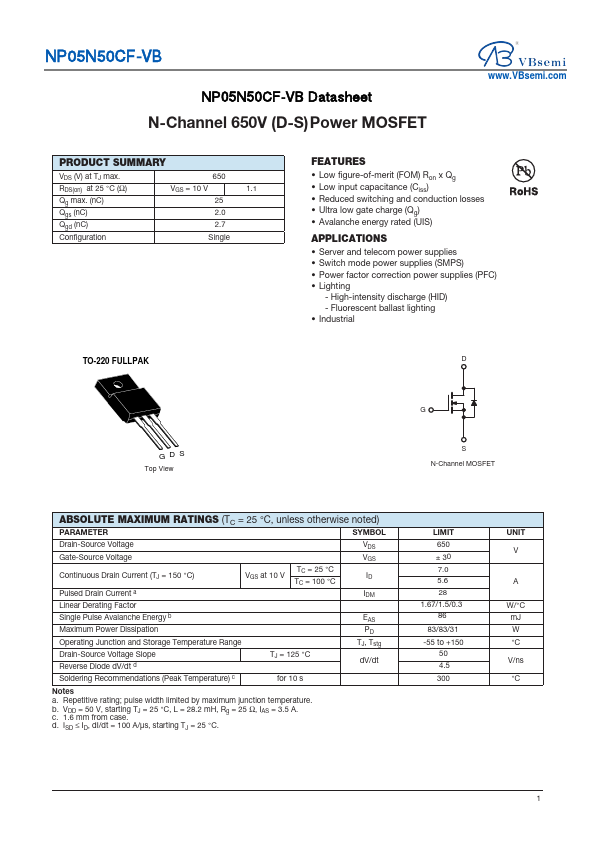

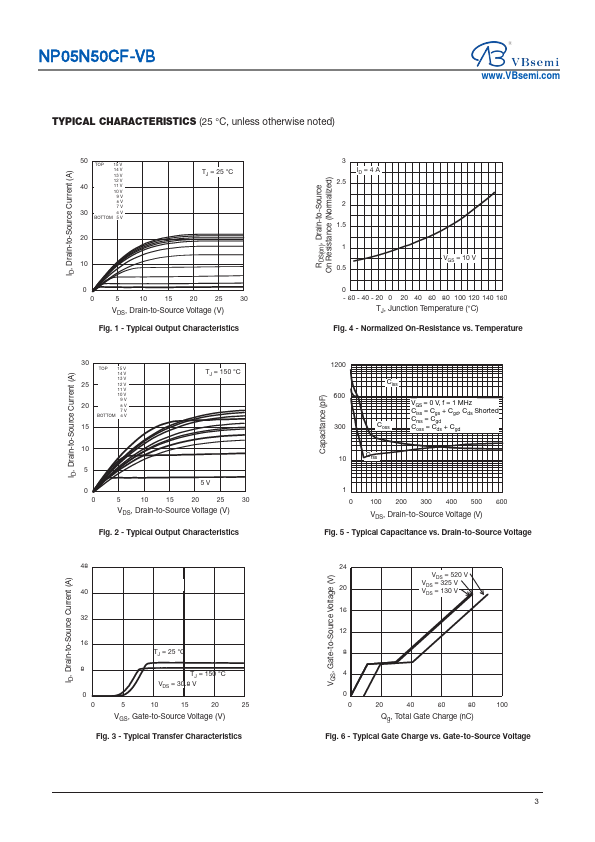

datasheet Preview Page 1 from Datasheet4u.com

NP05N50CF-VBsemi.pdf

NP05N50CF Datasheet Preview — Preview of NP05N50CF PDF

Datasheet Details

Part number:

NP05N50CF

Manufacturer:

VBsemi

File Size:

286.61 KB

Description:

N-Channel 650V Power MOSFET

Features

* Low figure-of-merit (FOM) Ron x Qg
* Low input capacitance (Ciss)
* Reduced switching and conduction losses
* Ultra low gate charge (Qg)

Applications

* Server and telecom power supplies
* Switch mode power supplies (SMPS)
* Power factor correction power supplies (PFC)
* Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
* Industrial TO-220 FULLPAK D GDS Top View G S N-Channel MOSFE

NP05N50CF Distributors
