QN10L16, N-Channel 100V MOSFET

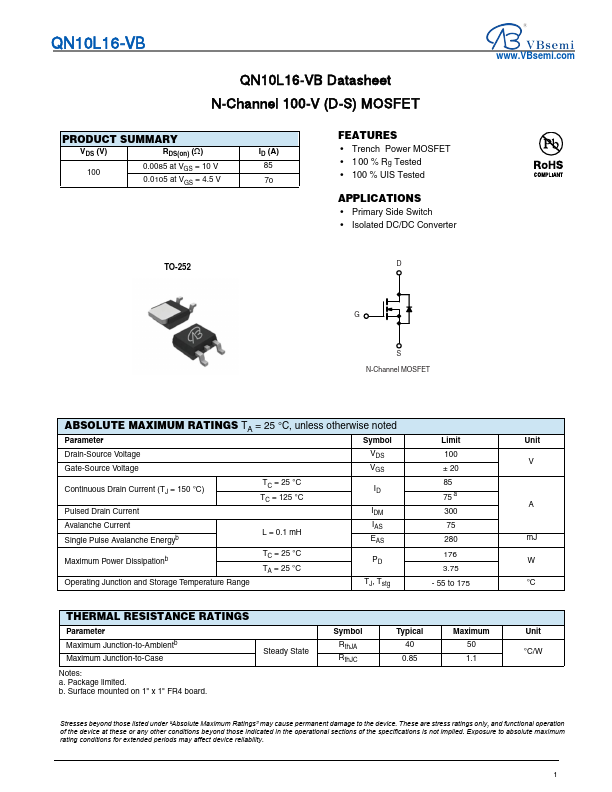

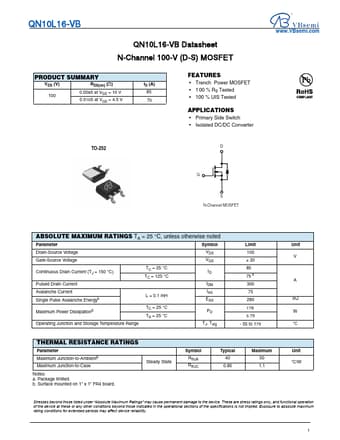

QN10L16-VB QN10L16-VB Datasheet N-Channel 100-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 100 0.0085 at VGS = 10 V 0.0105 at VGS = 4.5 V.

datasheet Preview Page 1 from Datasheet4u.com

QN10L16-VBsemi.pdf

QN10L16 Datasheet Preview — Preview of QN10L16 PDF

Datasheet Details

Part number:

QN10L16

Manufacturer:

VBsemi

File Size:

393.00 KB

Description:

N-Channel 100V MOSFET

Features

* Trench Power MOSFET
* 1 00 % Rg Tested

Applications

* Primary Side Switch
* Isolated DC/DC Converter TO-252 D www. VBsemi. com G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 100 V VGS ± 20 Continuous Drain Current (
