S4205 - P-Channel 30V MOSFET

S4205 Description

S4205-VB S4205-VB Datasheet P-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.011 at VGS = - 10 V 0.012 at.

S4205 Features

* Halogen-free According to IEC 61249-2-21 Available
* Trench Power MOSFET
* 100 % Rg Tested

S4205 Applications

* Load Switches - Notebook PCs - Desktop PCs ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 150 °C) TC = 70 °C TA = 25 °C ID Pulsed Drain Current TA = 70 °C I

📥 Download Datasheet

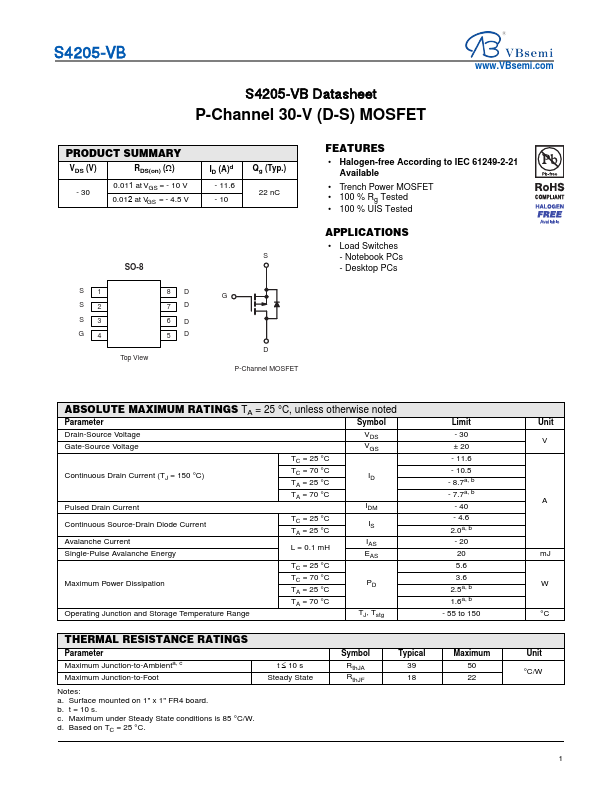

Preview of S4205 PDF

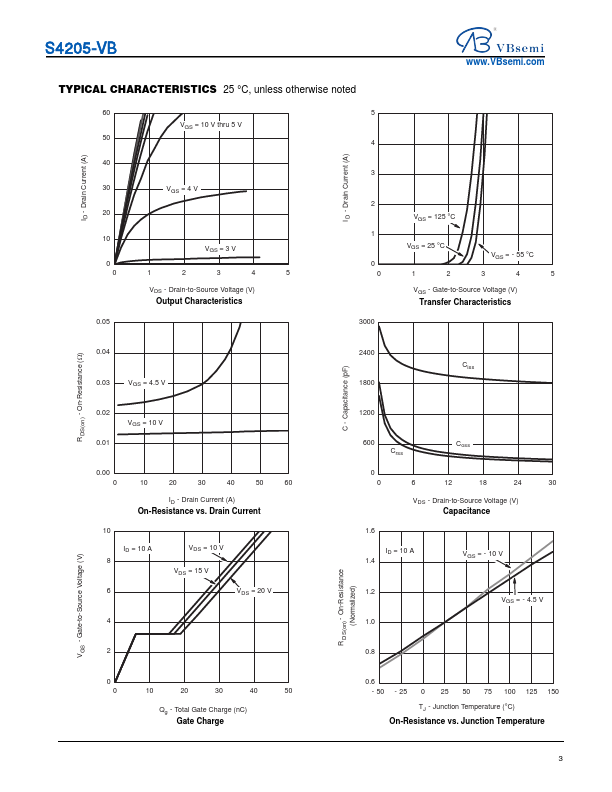

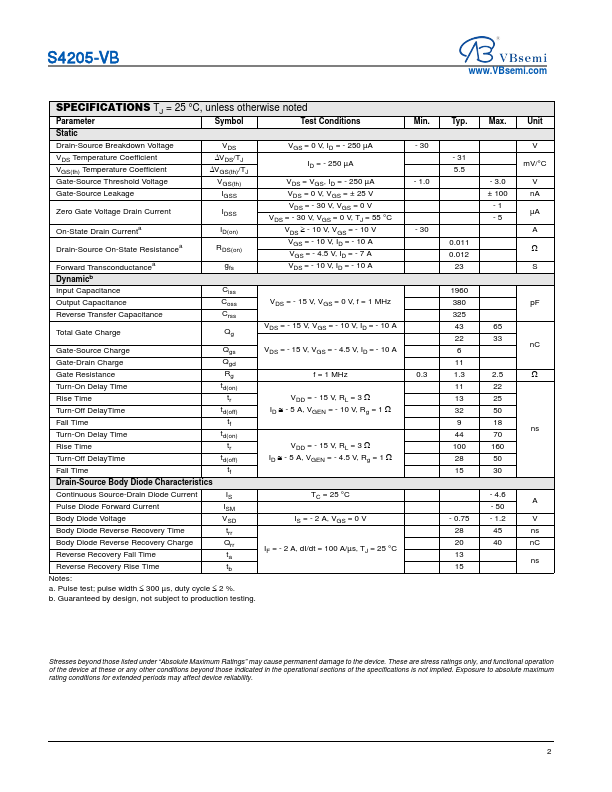

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S4205
Manufacturer
VBsemi
File Size
220.43 KB
Datasheet
S4205-VBsemi.pdf
Description
P-Channel 30V MOSFET
