SDM9435A - P-Channel 30V MOSFET

VBsemi

SDM9435A Description

SDM9435A-VB SDM9435A-VB Datasheet P-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.033 at VGS = - 10 V - 30 0..

SDM9435A Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* Compliant to RoHS Directive 2002/95/EC SO-8 S1 S2 S3 G4 8D 7D 6D 5D Top View S G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol 10 s Steady

📥 Download Datasheet

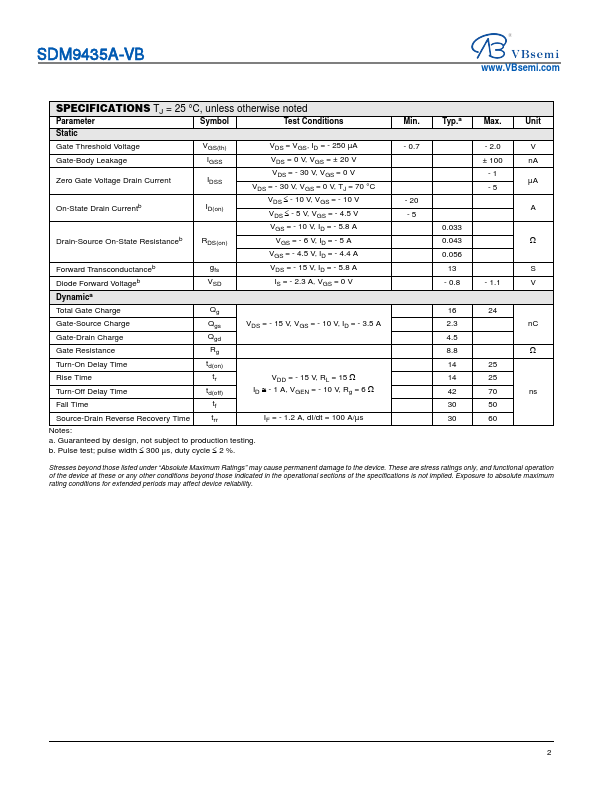

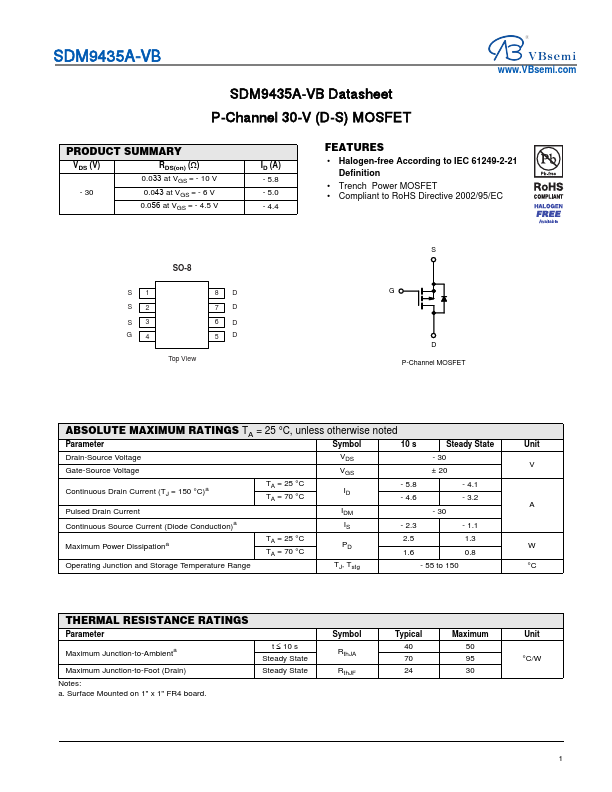

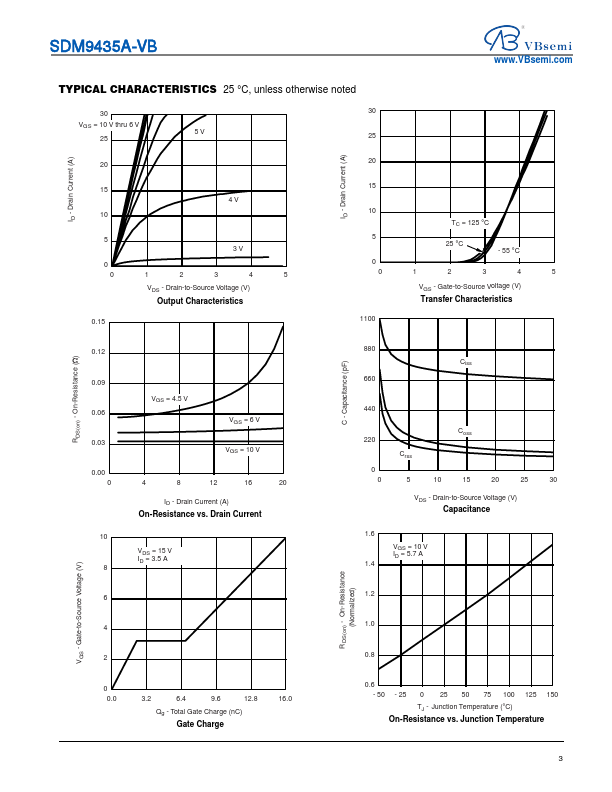

SDM9435A Datasheet Preview — Preview of SDM9435A PDF

Datasheet Details

Part number: SDM9435A
Manufacturer: VBsemi
File Size: 228.62 KB
Datasheet: SDM9435A-VBsemi.pdf
Description: P-Channel 30V MOSFET
