SI1304BDL N-Channel 20V MOSFET

VBsemi

Description

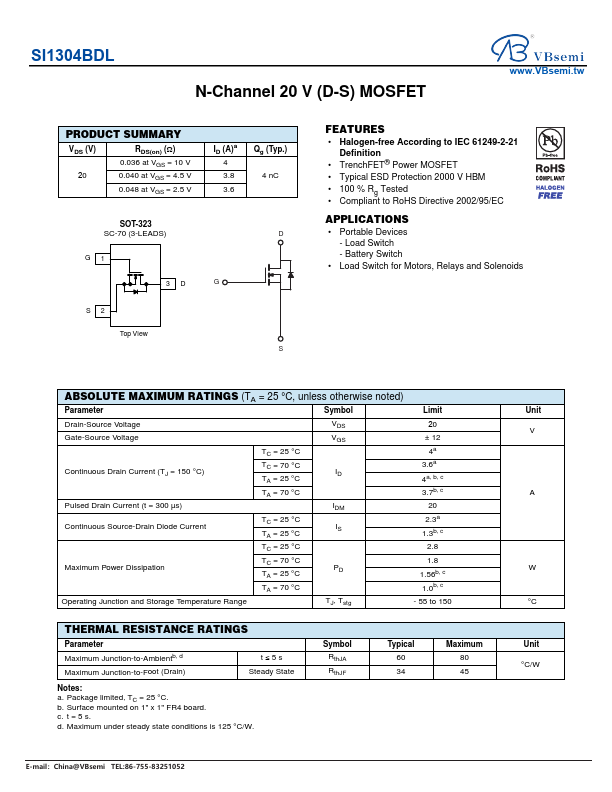

SI1304BDL N-Channel 20 V (D-S) MOSFET www.VBsemi.tw PRODUCT SUMMARY VDS (V) 20 RDS(on) () 0.036 at VGS = 10 V 0.040 at VGS = 4.5 V 0.048 at VGS .

📥 Download Datasheet

SI1304BDL Datasheet Preview — Preview of SI1304BDL PDF

Datasheet Specifications

Part number: SI1304BDL
Manufacturer: VBsemi
File Size: 921.24 KB
Datasheet: SI1304BDL-VBsemi.pdf
Description: N-Channel 20V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* Typical ESD Protection 2000 V HBM
* 100 % Rg Tested

Applications

* Portable Devices - Load Switch - Battery Switch
* Load Switch for Motors, Relays and Solenoids ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 150 °C)
