SM1A25NSU N-Channel 100V MOSFET

VBsemi

Description

SM1A25NSU-VB SM1A25NSU-VB Datasheet N-Channel 100 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 100 RDS(on) () 0.114 at VGS = 10 V ID (A.

📥 Download Datasheet

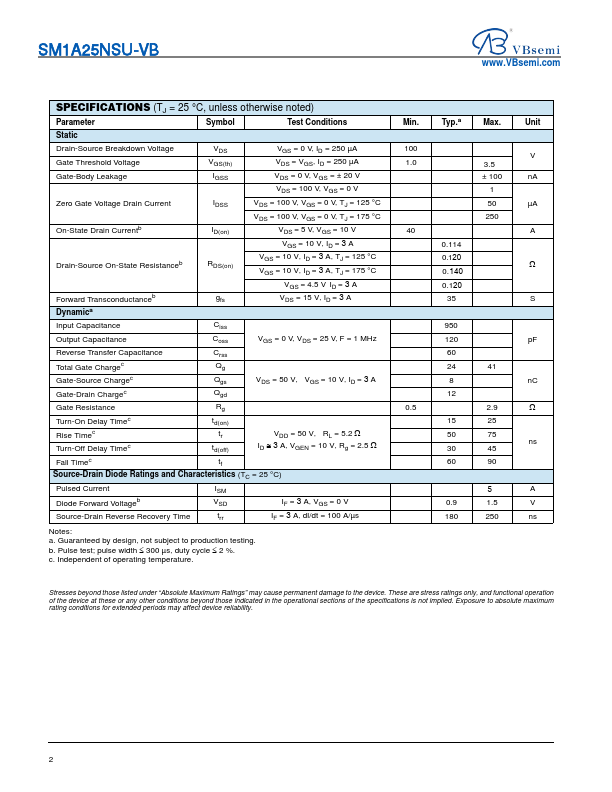

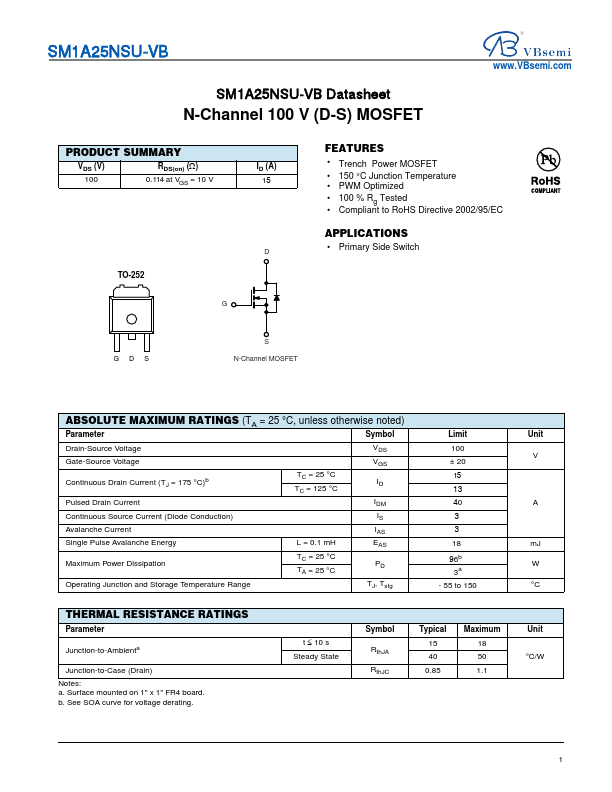

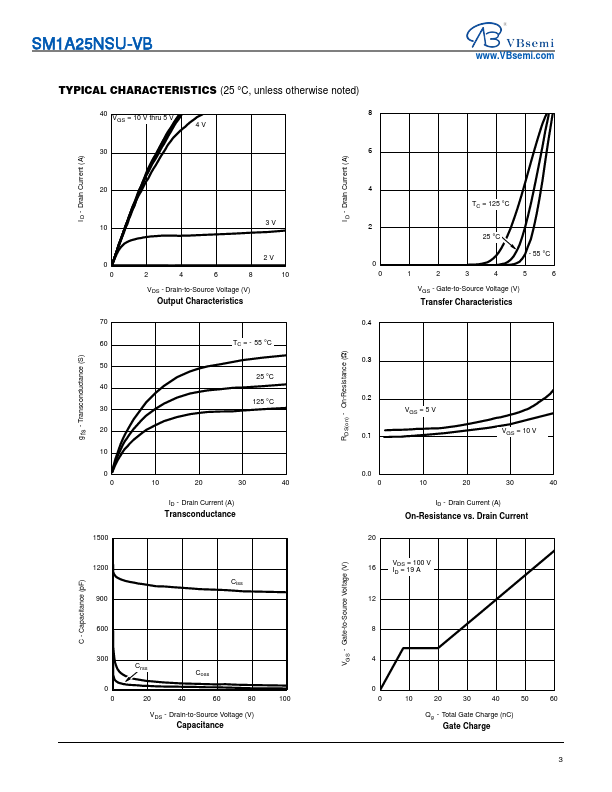

SM1A25NSU Datasheet Preview — Preview of SM1A25NSU PDF

Datasheet Specifications

Part number: SM1A25NSU
Manufacturer: VBsemi
File Size: 247.70 KB
Datasheet: SM1A25NSU-VBsemi.pdf
Description: N-Channel 100V MOSFET

Features

* Trench Power MOSFET
* 150 °C Junction Temperature
* PWM Optimized
* 100 % Rg Tested

Applications

* Primary Side Switch G GD S S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 175 °C)b TC = 25 °C TC = 125 °C ID Pulsed Drain Current IDM Continuou
