SM1A25NSUB N-Channel 100V MOSFET

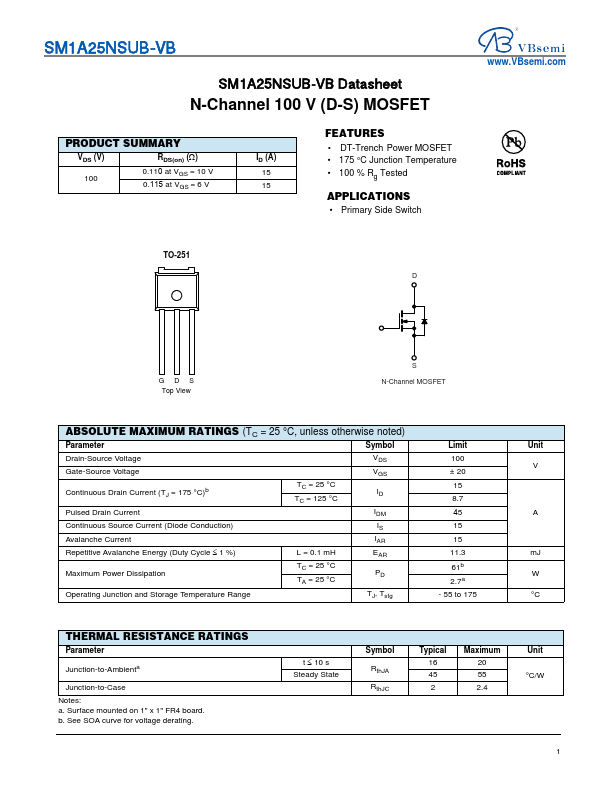

📥 Download Datasheet  Datasheet Preview Page 1

Description

SM1A25NSUB-VB SM1A25NSUB-VB Datasheet N-Channel 100 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) 100 RDS(on) () 0.110 at VGS = 10 V 0.115 at VGS = 6 V .

📥 Download Datasheet

Preview of SM1A25NSUB PDF

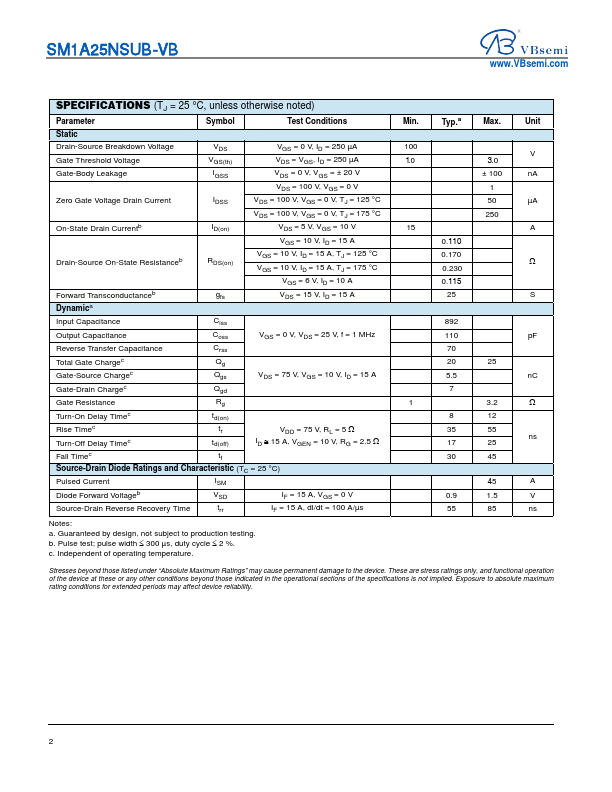

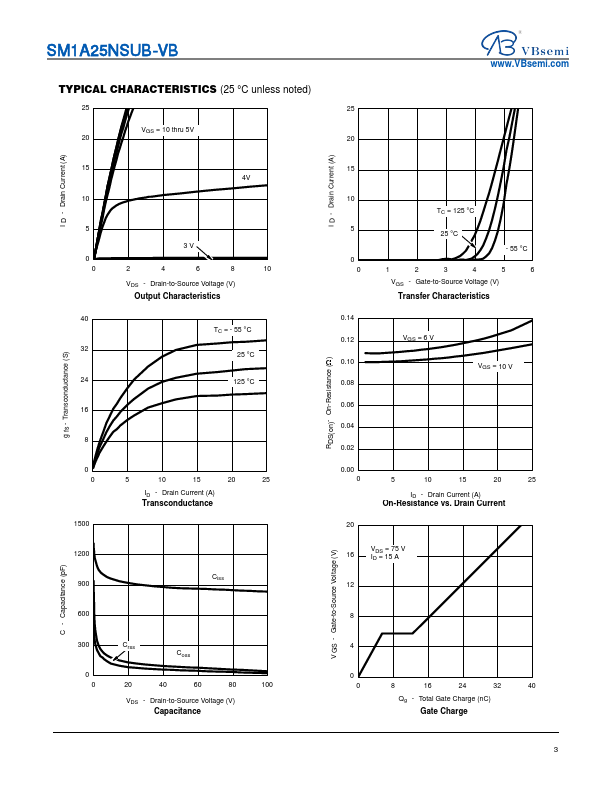

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SM1A25NSUB
Manufacturer
VBsemi
File Size
230.42 KB
Datasheet
SM1A25NSUB-VBsemi.pdf
Description
N-Channel 100V MOSFET

Features

* DT-Trench Power MOSFET
* 175 °C Junction Temperature

Applications

* Primary Side Switch www. VBsemi. com TO-251 D GDS Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 100 V VGS ± 20 Continuous Drain Current (TJ = 175 °C)b TC =
