SM2692NSC - N-Channel 200V MOSFET

Features

  • Halogen-free According to IEC 61249-2-21 Definition.
  • TrenchFET® Power MOSFET.
  • Low On-Resistance.
  • 100 % Rg Tested.
  • Compliant to RoHS Directive 2002/95/EC.

📥 Download Datasheet

Datasheet preview – SM2692NSC

Datasheet Details

Part number SM2692NSC
Manufacturer VBsemi
File Size 251.06 KB
Description N-Channel 200V MOSFET
Datasheet download datasheet SM2692NSC Datasheet
Additional preview pages of the SM2692NSC datasheet.

📁 Similar Datasheet

  • SM2692NSC - N-Channel MOSFET (Sinopower)
  • SM2690NSC - N-channel MOSFET (Sinopower)
  • SM2691PSC - P-Channel MOSFET (Sinopower)
  • SM260 - TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER (Dc Components)
  • SM2601PSC - P-Channel MOSFET (Sinopower)
  • SM2602NSC - N-Channel MOSFET (Sinopower)
  • SM2604NSC - N-Channel MOSFET (Sinopower)
  • SM2605PSC - P-Channel MOSFET (Sinopower)
  • SM2607CSC - MOSFET (Sinopower)
  • SM2608NSC - N-Channel MOSFET (Sinopower)
Other Datasheets by VBsemi

Full PDF Text Transcription

Click to expand full text

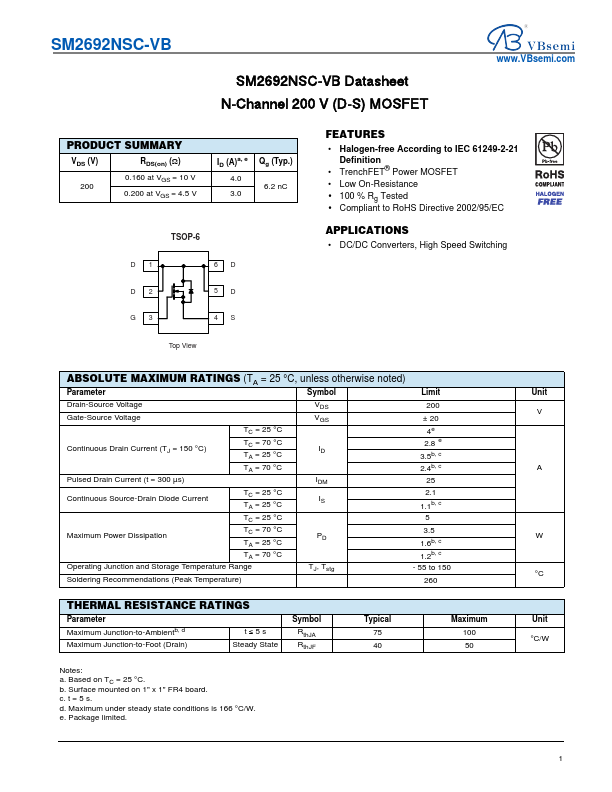

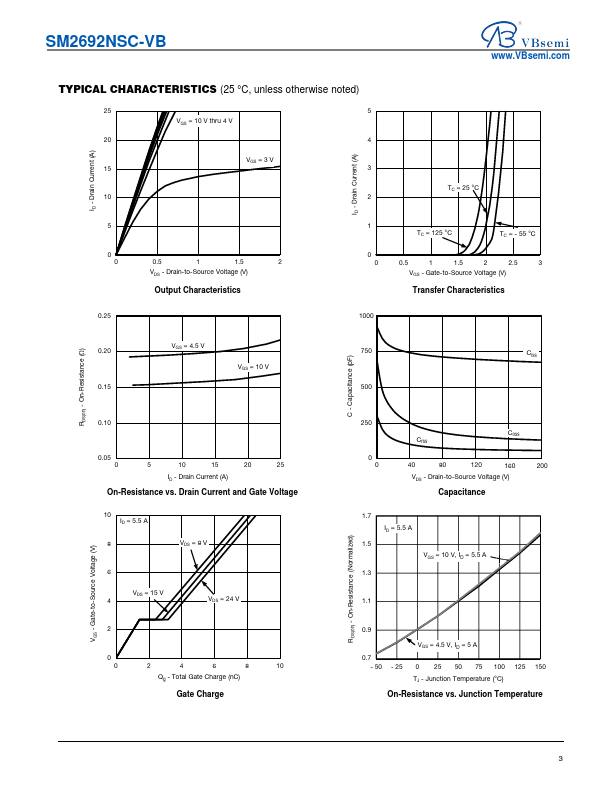

SM2692NSC-VB SM2692NSC-VB Datasheet N-Channel 200 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () 0.160 at VGS = 10 V 200 0.200 at VGS = 4.5 V ID (A)a, e 4.0 3.0 Qg (Typ.) 6.2 nC TSOP-6 D1 D2 6D 5D G3 4S FEATURES • Halogen-free According to IEC 61249-2-21 Definition • TrenchFET® Power MOSFET • Low On-Resistance • 100 % Rg Tested • Compliant to RoHS Directive 2002/95/EC APPLICATIONS • DC/DC Converters, High Speed Switching Top View ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current (t = 300 µs) VDS VGS TC = 25 °C TC = 70 °C TA = 25 °C ID TA = 70 °C IDM 200 ± 20 4e 2.8 e 3.5b, c 2.
