STB40NE03L-20T4 - N-Channel 30V MOSFET

STB40NE03L-20T4 Description

STB40NE03L-20T4-VB STB40NE03L-20T4-VB Datasheet N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 30 RDS(on) () 0.012 at VGS = 1.

STB40NE03L-20T4 Features

* Trench Power MOSFET
* 100 % Rg and UIS Tested

STB40NE03L-20T4 Applications

* OR-ing
* Server
* DC/DC S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 175 °C) TC = 70 °C TA = 25 °C ID TA = 70 °C Pu

📥 Download Datasheet

Preview of STB40NE03L-20T4 PDF

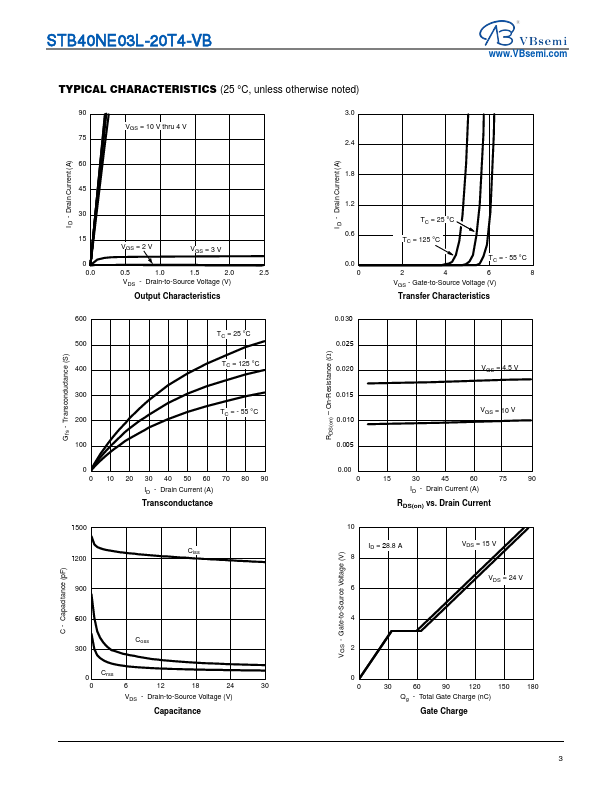

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STB40NE03L-20T4
Manufacturer
VBsemi
File Size
228.78 KB
Datasheet
STB40NE03L-20T4-VBsemi.pdf
Description
N-Channel 30V MOSFET
