* Dynamic dV/dt Rating
* Repetitive Avalanche Rated
* Isolated Central Mounting Hole
* Fast Switching
* Ease of Paralleling
* Simple Drive Requirements
* Compliant to RoHS Directive 2002/95/EC Available RoHS
* COMPLIANT TO-220 FULLPAK D
SWF5N80
VBsemi
441.92 KB
N-channel 800v power mosfet.

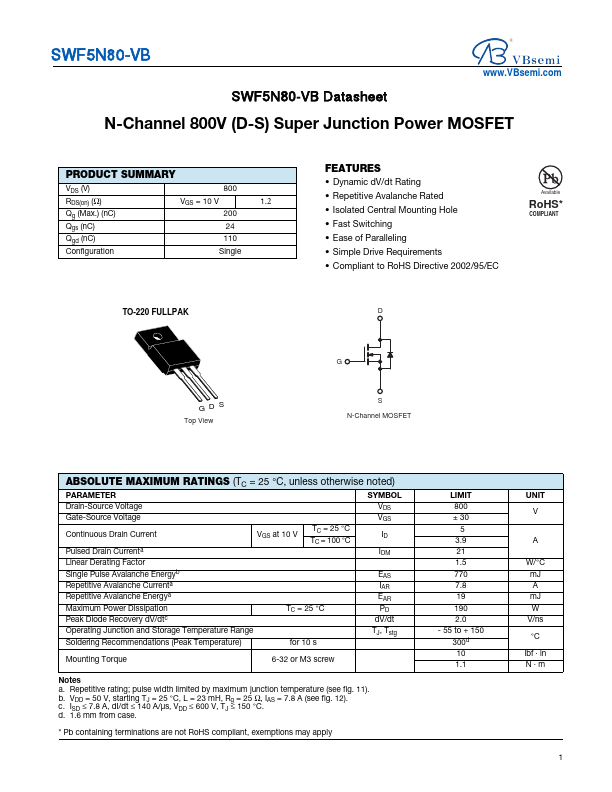

SWF5N80-VB www.VBsemi.com SWF5N80-VB Datasheet N-Channel 800V (D-S) Super Junction Power MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC.
