* Trench Power MOSFETs
* 175 °C Junction Temperature
* New Low Thermal Resistance Package
* PWM Optimized
* Compliant to RoHS Directive 2002/95/EC APPLICATIONS
* Primary Side Switch D GD S Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC =
T254L
VBsemi
240.85 KB
N-channel 150v mosfet.

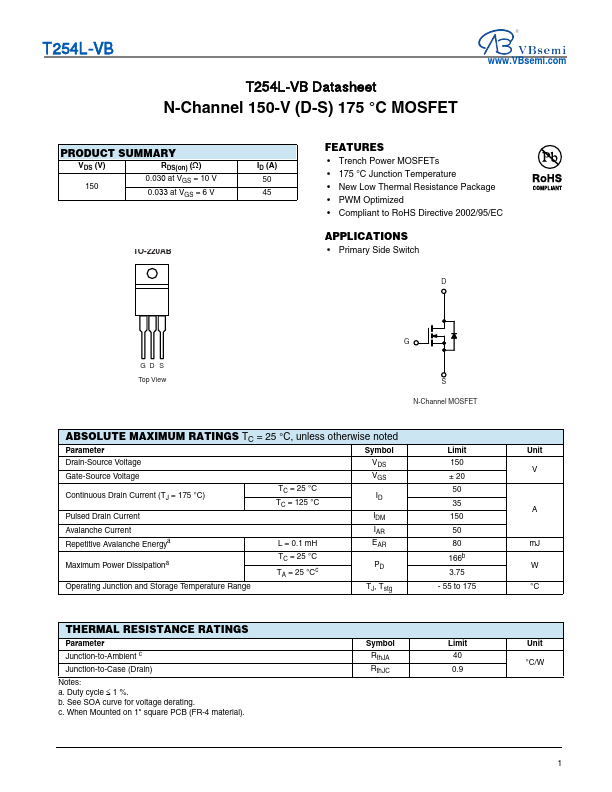

T254L-VB T254L-VB Datasheet N-Channel 150-V (D-S) 175 °C MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 150 0.030 at VGS = 10 V 0.0.
