T424 - N-Channel 30-V MOSFET

VBsemi

T424 Description

T424-VB T424-VB Datasheet N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () at VGS = 10 V RDS(on) () at VGS = 4.5 V I.

T424 Features

* Trench Power MOSFET
* 100 % Rg and UIS Tested

T424 Applications

* OR-ing
* Server
* DC/DC G GDS Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 175 °C) TC = 70 °C TA = 25 °C ID

📥 Download Datasheet

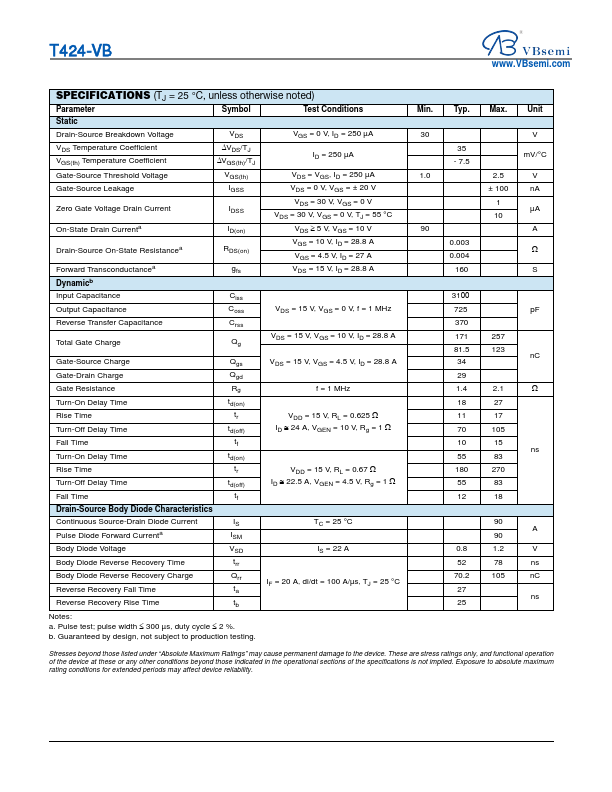

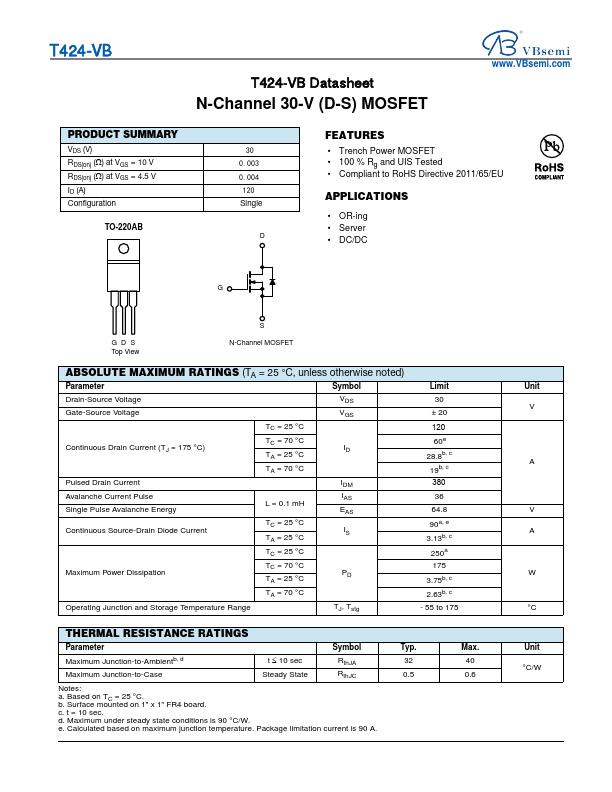

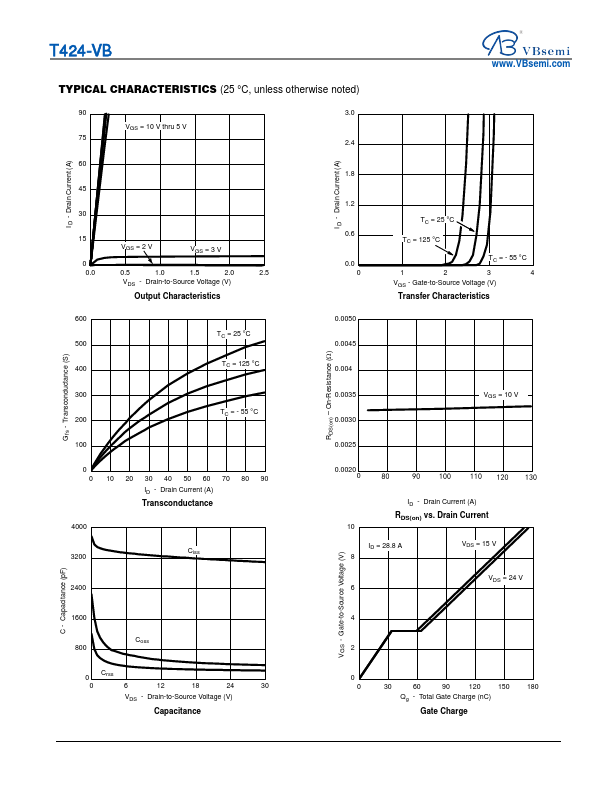

T424 Datasheet Preview — Preview of T424 PDF

Datasheet Details

Part number: T424
Manufacturer: VBsemi
File Size: 245.43 KB
Datasheet: T424-VBsemi.pdf
Description: N-Channel 30-V MOSFET
