TPC8057-H - N-Channel 30V MOSFET

TPC8057-H Description

TPC8057-H-VB TPC8057-H-VB Datasheet N-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 30 0.004 at VGS = 10 V 0.00.

TPC8057-H Features

* Halogen-free
* Trench Power MOSFET
* Optimized for High-Side Synchronous Rectifier Operation
* 100 % Rg Tested

TPC8057-H Applications

* Notebook CPU Core - High-Side Switch D G Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 30 VGS ± 20 V TC = 25 °C 18 Continuous Drain Current (TJ = 150 °C) TC =

📥 Download Datasheet

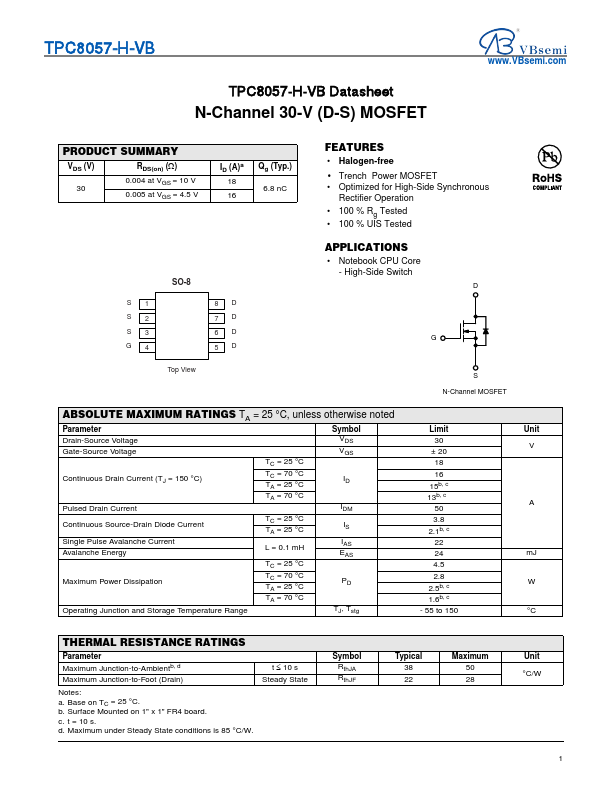

Preview of TPC8057-H PDF

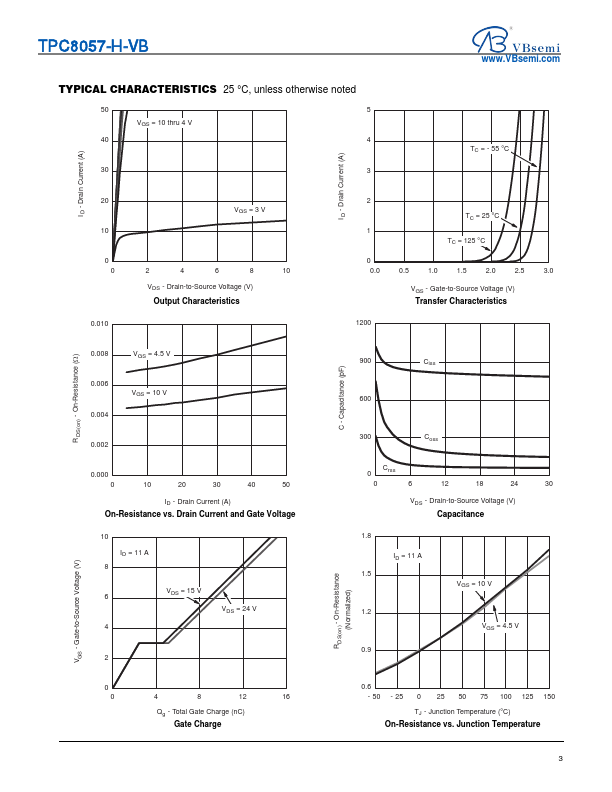

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPC8057-H
Manufacturer
VBsemi
File Size
183.86 KB
Datasheet
TPC8057-H-VBsemi.pdf
Description
N-Channel 30V MOSFET
