VB7202M, N-Channel 200V MOSFET

VB7202M N-Channel 200 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) () 0.160 at VGS = 10 V 200 0.200 at VGS = 4.5 V ID (A)a, e.

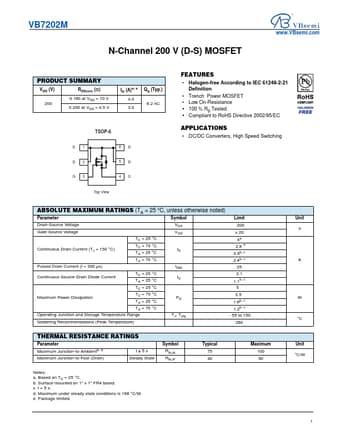

datasheet Preview Page 1 from Datasheet4u.com

VB7202M-VBsemi.pdf

VB7202M Datasheet Preview — Preview of VB7202M PDF

Datasheet Details

Part number:

VB7202M

Manufacturer:

VBsemi

File Size:

239.23 KB

Description:

N-Channel 200V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* Low On-Resistance
* 100 % Rg Tested

Applications

* DC/DC Converters, High Speed Switching ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current (t = 300 µs) VDS VGS TC = 25 °C TC = 70 °C TA = 25 °C I
