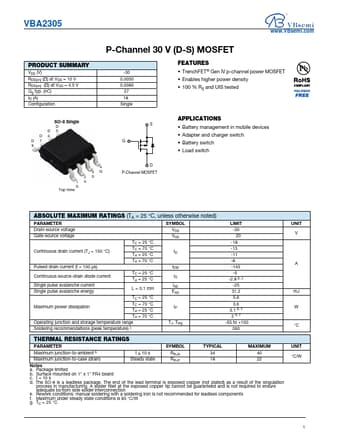

VBA2305 Datasheet, Mosfet, VBsemi

VBA2305 Features

• Mosfet
• TrenchFET® Gen IV p-channel power MOSFET
• Enables higher power density
• 100 % Rg and UIS tested SO-8 Single D D5 D6 D7 8 APPLICATIONS S
• Battery

PDF File Details

Part number:

VBA2305

Manufacturer:

VBsemi

File Size:

301.02kb

Download:

📄 Datasheet

Description:

P-channel mosfet.

VBA2305 Application

• Applications S
• Battery management in mobile devices
• Adapter and charger switch G
• Battery switch
• Load s
