VBA4309 Dual P-Channel MOSFET

VBA4309 Description

VBA4309 Dual P-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.007 at VGS = - 10 V 0.0115 at VGS = - 4.5 V.

VBA4309 Features

* Halogen-free
* TrenchFET® Power MOSFET
* 100 % Rg Tested

VBA4309 Applications

* Load Switch
* Notebook Adaptor Switch S1 S2 S1 1 8 D1 G1 2 7 D1 G1 G2 S2 3 6 D2 G2 4 5 D2 Top View D1 P-Channel MOSFET D2 P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage

📥 Download Datasheet

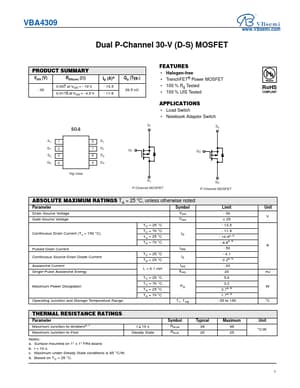

Preview of VBA4309 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VBA4309
Manufacturer
VBsemi
File Size
260.10 KB
Datasheet
VBA4309-VBsemi.pdf
Description
Dual P-Channel MOSFET
