VBHA2245N Datasheet (321.53 KB)
VBHA2245N
VBsemi
321.53 KB
P-channel mosfet.
VBHA2245N

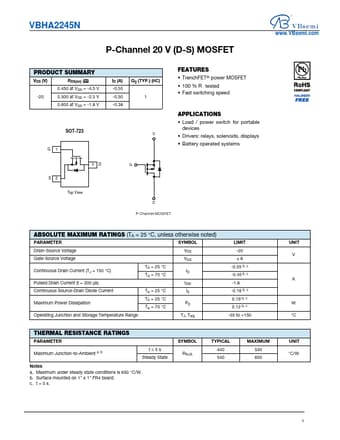

P-Channel 20 V (D-S) MOSFET
www.VBsemi.com
PRODUCT SUMMARY
VDS (V)
RDS(on) (Ω)
0.450 at VGS = -4.5 V
-20
0.500 at VGS = -2.5 V
0.60.
* TrenchFET® power MOSFET
* 100 % R tested
* Fast switching speed APPLICATIONS
* Load / power switch for portable devices
* Drivers: relays, solenoids, displays
* Battery operated systems S2 3D G Top View D P-Channel MOSFET ABSOLUTE MAXIMUM RATIN
