VBQA3303G Datasheet (364.67 KB)
VBQA3303G
VBsemi
364.67 KB
Dual n-channel mosfet.
VBQA3303G

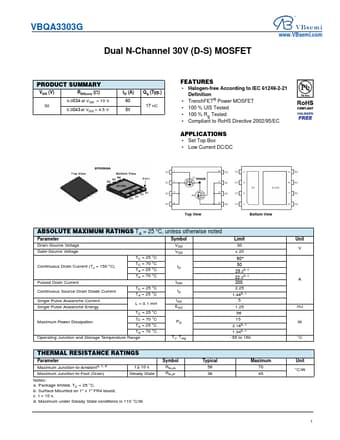

Dual N-Channel 30V (D-S) MOSFET
www.VBsemi.com
PRODUCT SUMMARY
VDS (V)
RDS(on) (Ω)
0.0034 at VGS = 10 V 30
0.0043 at VGS = 4.5 V
ID (.
* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % UIS Tested
* 100 % Rg Tested
* Compliant to RoHS Directive 2002/95/EC APPLICATIONS
* Set Top Box
* Low Current DC/DC PHASE Top View Bottom View ABSOLUTE
