VS3698AE - N-Channel MOSFET

VS3698AE Description

VS3698AE-VB VS3698AE-VB Datasheet N-Channel 30 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) 30 RDS(on) () Typ.0.004 at VGS = 4.5 V 0.0.

VS3698AE Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested

VS3698AE Applications

* Motor Control
* Industrial
* Load Switch
* ORing D Top View 1 8 2 7 G 3 6 4 5 Pin 1 S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain

📥 Download Datasheet

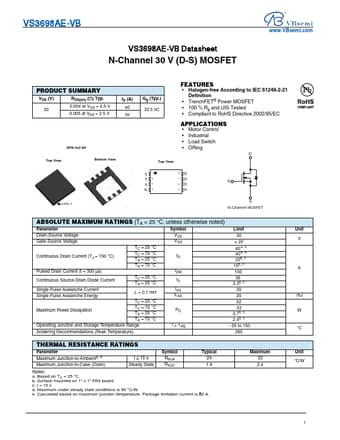

Preview of VS3698AE PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS3698AE
Manufacturer
VBsemi
File Size
223.64 KB
Datasheet
VS3698AE-VBsemi.pdf
Description
N-Channel MOSFET
