WNM2025-3, N-Channel 20V MOSFET

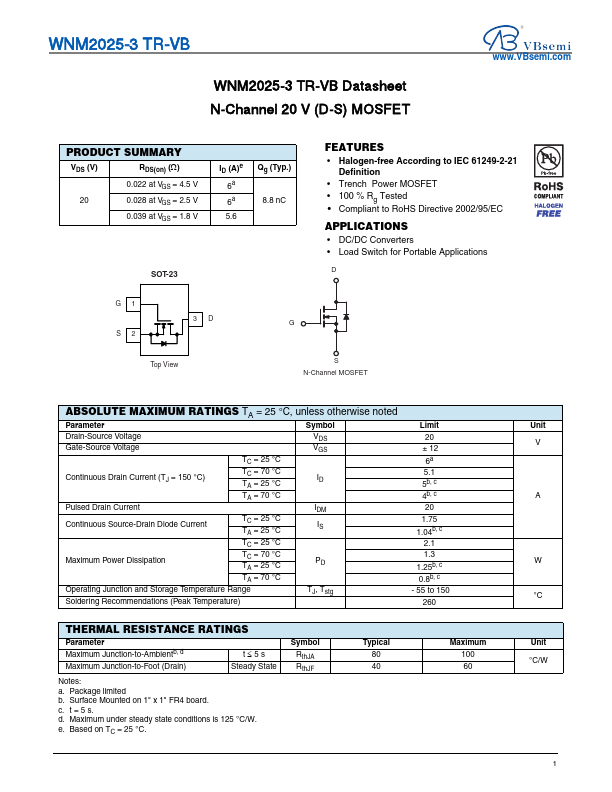

WNM2025-3 TR-VB WNM2025-3 TR-VB Datasheet N-Channel 20 V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.022 at VGS = 4.5 V 20.

datasheet Preview Page 1 from Datasheet4u.com

WNM2025-3-VBsemi.pdf

WNM2025-3 Datasheet Preview — Preview of WNM2025-3 PDF

Datasheet Details

Part number:

WNM2025-3

Manufacturer:

VBsemi

File Size:

236.95 KB

Description:

N-Channel 20V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % Rg Tested

Applications

* DC/DC Converters
* Load Switch for Portable Applications D G1 S2 3D Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 150
