WSD20L70DN - P-Channel 20V MOSFET

VBsemi

📥 Download Datasheet

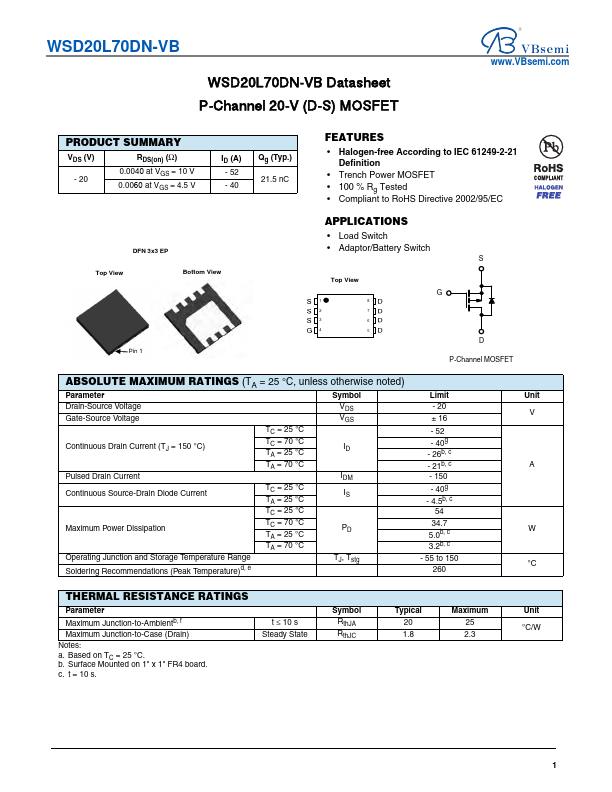

WSD20L70DN Datasheet Preview — Preview of WSD20L70DN PDF

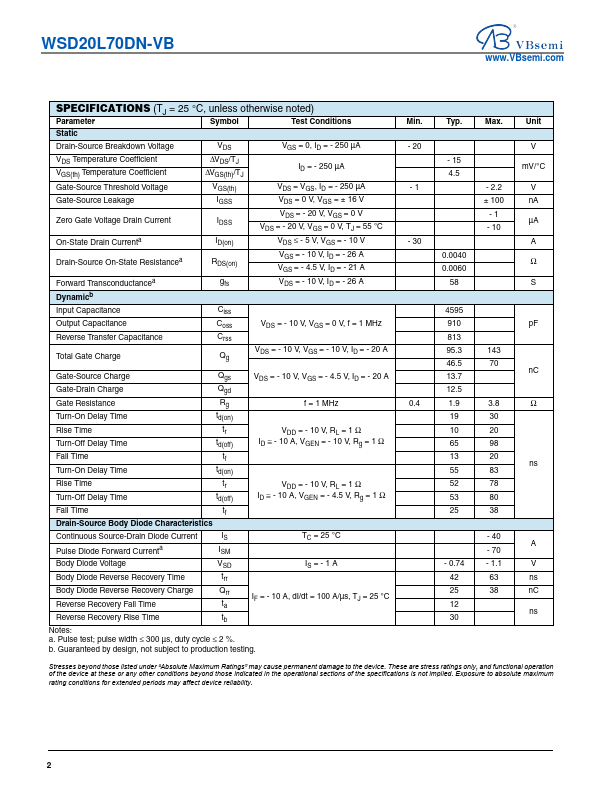

datasheet Preview Page 2

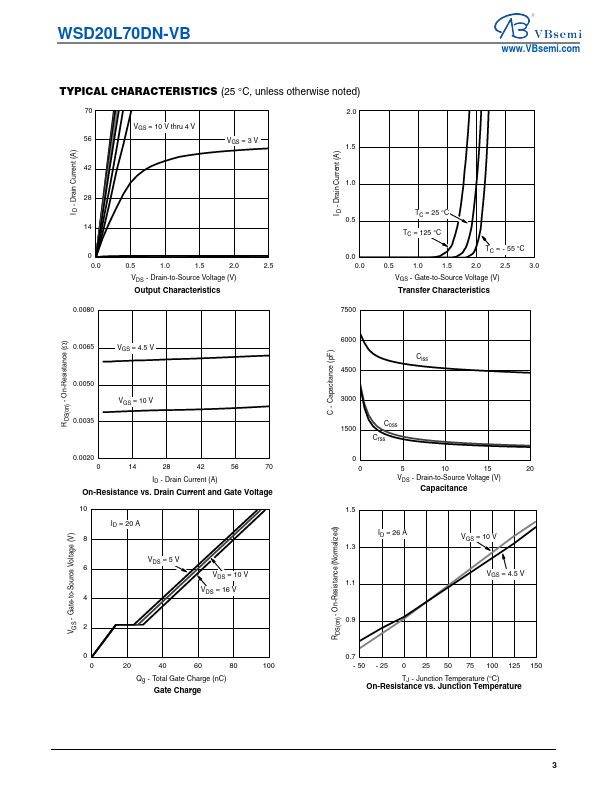

datasheet Preview Page 3

Datasheet Details

Part number	WSD20L70DN
Manufacturer	VBsemi ↗
File Size	305.18 KB
Description	P-Channel 20V MOSFET
Datasheet	WSD20L70DN-VBsemi.pdf

WSD20L70DN Product details

Features

Halogen-free According to IEC 61249-2-21 Definition.
Trench Power MOSFET.
100 % Rg Tested.
Compliant to RoHS Directive 2002/95/EC DFN 3x3 EP Top View Bottom View Pin 1.
