WSP4067 N- & P-Channel 40V MOSFET

VBsemi

Description

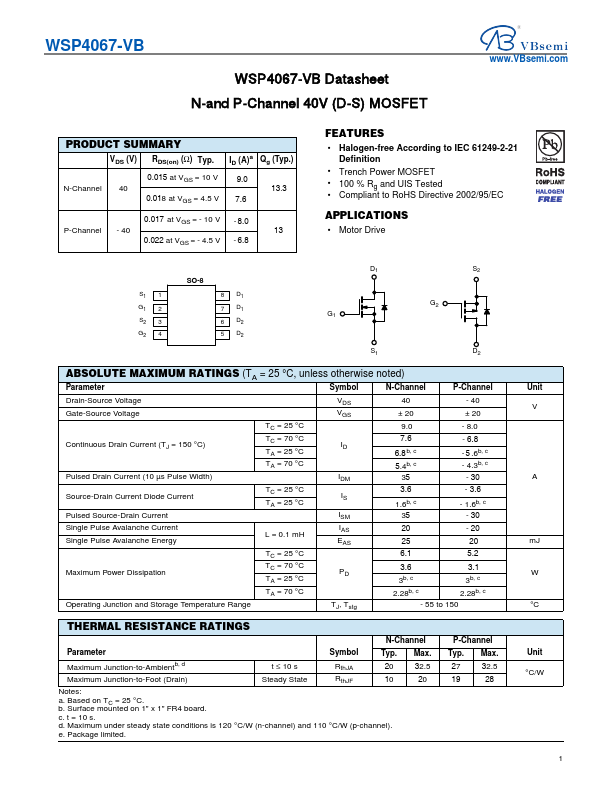

WSP4067-VB WSP4067-VB Datasheet N-and P-Channel 40V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Typ.0.015 at VGS = 10 V N-Chan.

📥 Download Datasheet

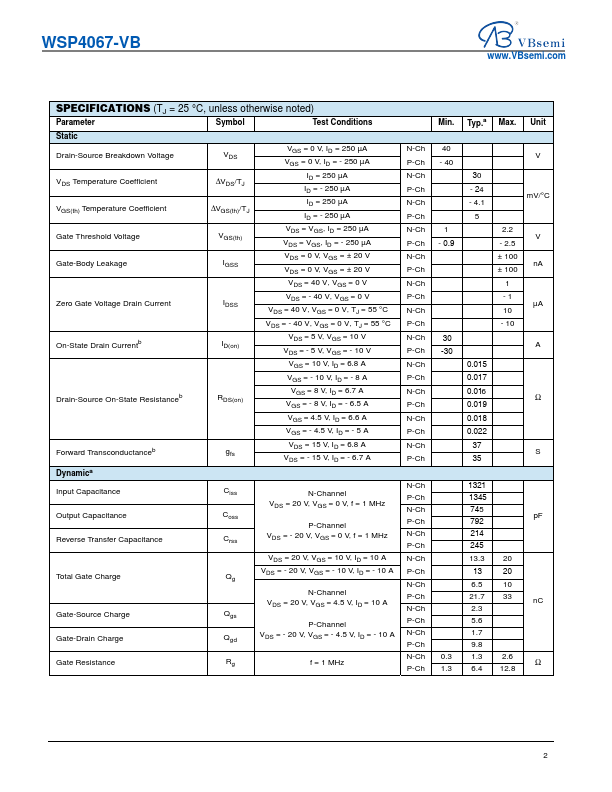

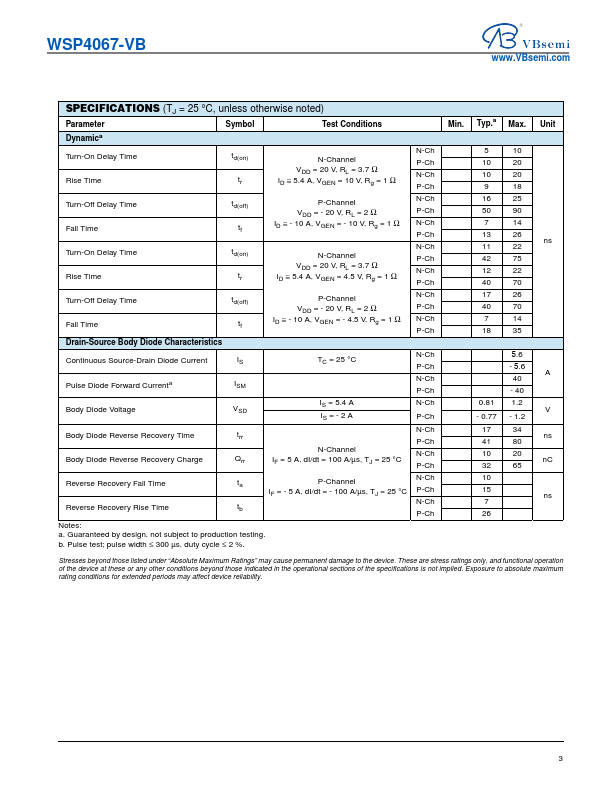

WSP4067 Datasheet Preview — Preview of WSP4067 PDF

Datasheet Specifications

Part number: WSP4067
Manufacturer: VBsemi
File Size: 296.77 KB
Datasheet: WSP4067-VBsemi.pdf
Description: N- & P-Channel 40V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % Rg and UIS Tested

Applications

* Motor Drive S1 1 G1 2 S2 3 G2 4 SO-8 8 D1 7 D1 6 D2 5 D2 D1 G1 S1 S2 G2 D2 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol N-Channel P-Channel Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current (10
