WSP9926B Dual N-Channel 20V MOSFET

WSP9926B Description

WSP9926B-VB WSP9926B-VB Datasheet Dual N-Channel 20-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.009 at VGS = 4.5 V 20 0.0.

WSP9926B Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % UIS Tested
* 100 % Rg Tested

WSP9926B Applications

* Set Top Box
* Low Current DC/DC D1 D2 G1 S1 N-Channel MOSFET G2 S2 N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS 20 V VGS ± 12 TC = 25 °C 10a Continuous Drain C

📥 Download Datasheet

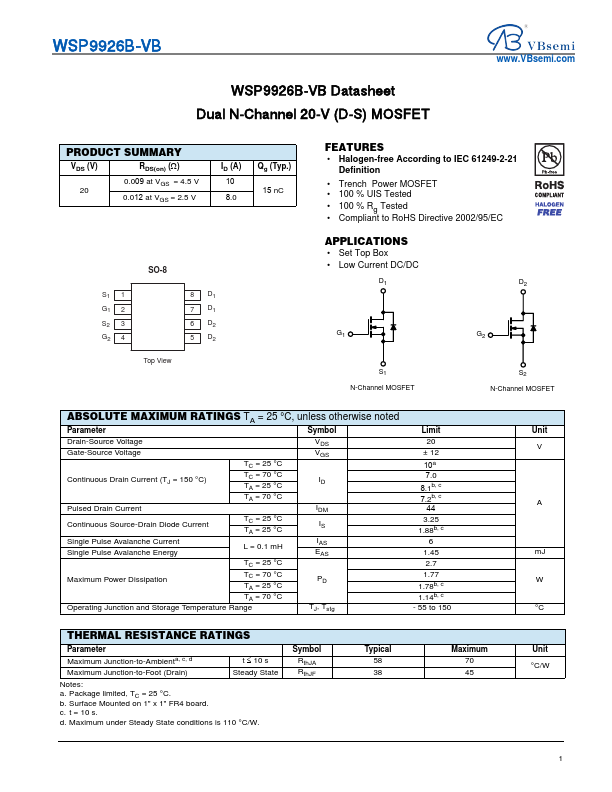

Preview of WSP9926B PDF

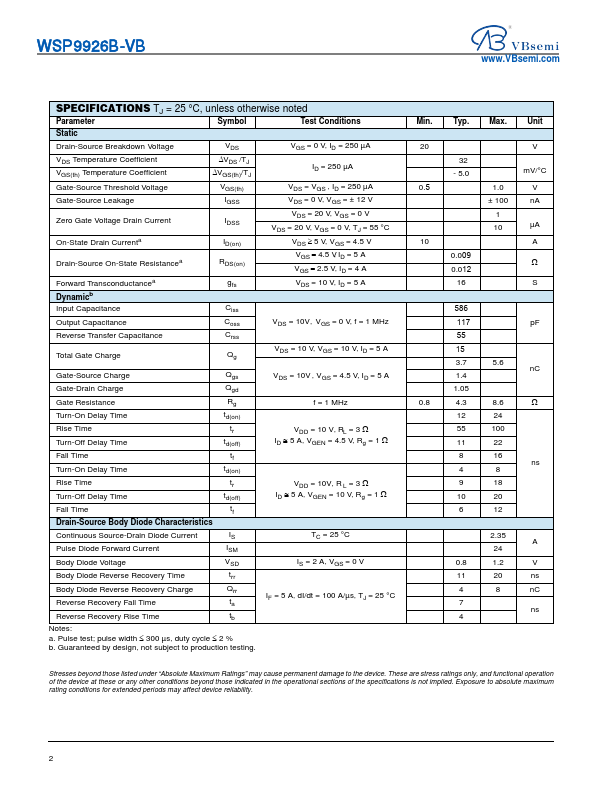

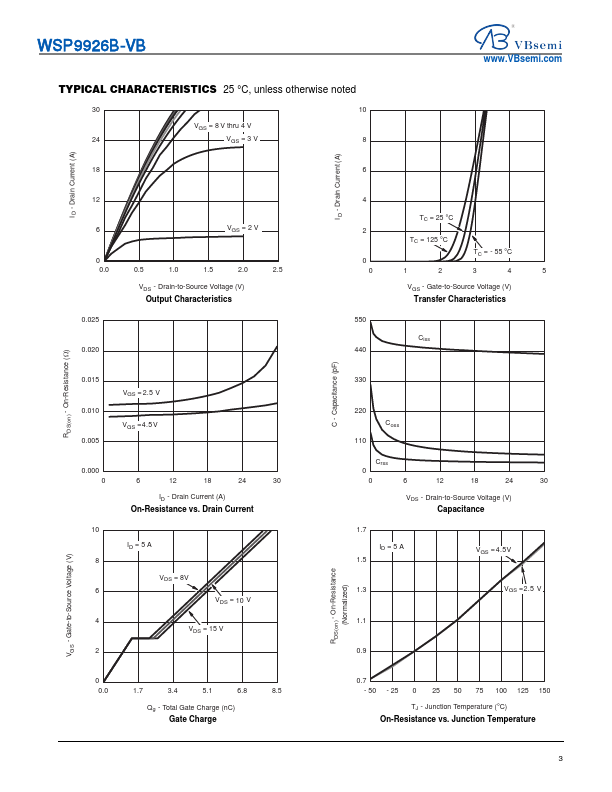

datasheet Preview Page 2 datasheet Preview Page 3
