VCM0504R90Y3 Datasheet - VIC

VCM0504R90Y3 Common mode Filter

VCM0504R90Y3 Features

* n Ceramic multilayer type SMD component n Non-polarized product n Effective for suppressing common mode noise and almost no effect for high speed differential data line Applications n MIPI, MHL serial interface in mobile device n LVDS lines in notebook computers n USB2.0, IEEE1394, DVI, HDMI lines

VCM0504R90Y3-VIC.pdf

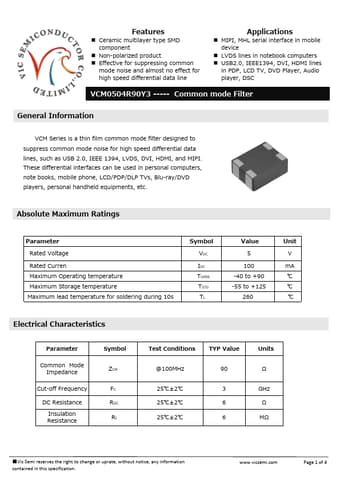

Preview of VCM0504R90Y3 PDF
VCM0504R90Y3 Datasheet Preview Page 2 VCM0504R90Y3 Datasheet Preview Page 3

Datasheet Details

Part number:

VCM0504R90Y3

Manufacturer:

VIC

File Size:

241.81 KB

Description:

Common mode filter.
