V50-850-C12, V50-850-C1 - VCSEL

V50-850-C12 Description

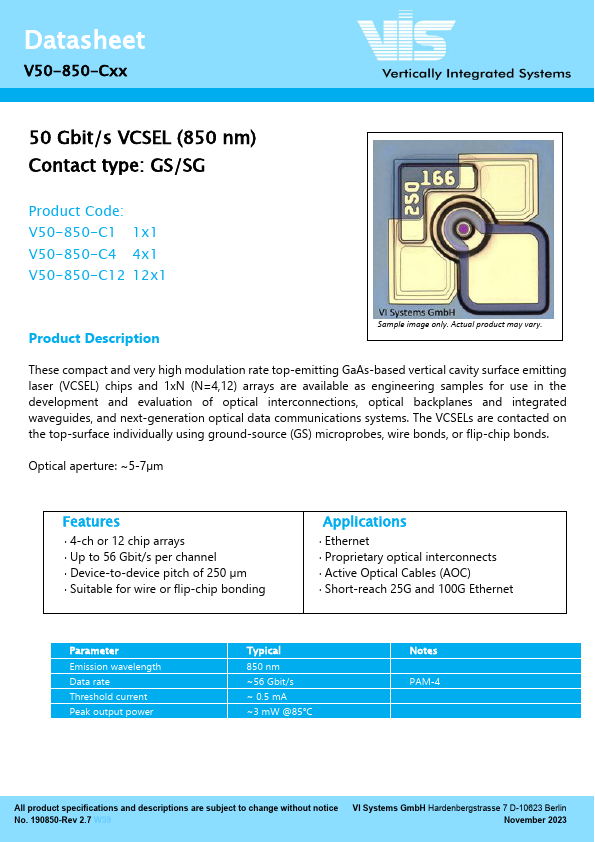

Datasheet V50-850-Cxx 50 Gbit/s VCSEL (850 nm) Contact type: GS/SG Product Code: V50-850-C1 1x1 V50-850-C4 4x1 V50-850-C12 12x1 Product .
Sample image only.

V50-850-C12 Features

* 4-ch or 12 chip arrays
* Up to 56 Gbit/s per channel
* Device-to-device pitch of 250 µm

V50-850-C12 Applications

* Ethernet
* Proprietary optical interconnects
* Active Optical Cables (AOC)
* Short-reach 25G and 100G Ethernet Parameter Emission wavelength Data rate Threshold current Peak output power Typical 850 nm ~56 Gbit/s ~ 0.5 mA ~3 mW @85°C Notes PAM-4 All product specifications and d

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: V50-850-C12, V50-850-C1. Please refer to the document for exact specifications by model.

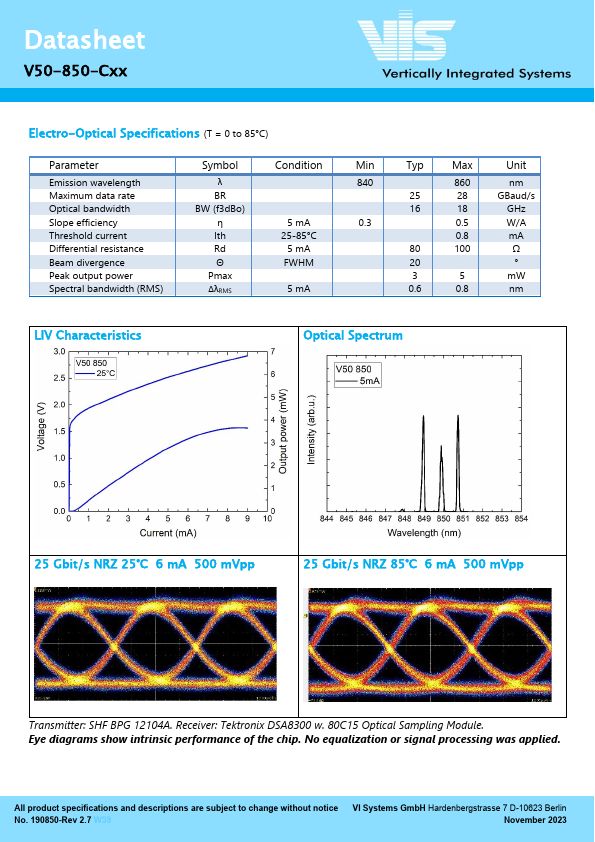

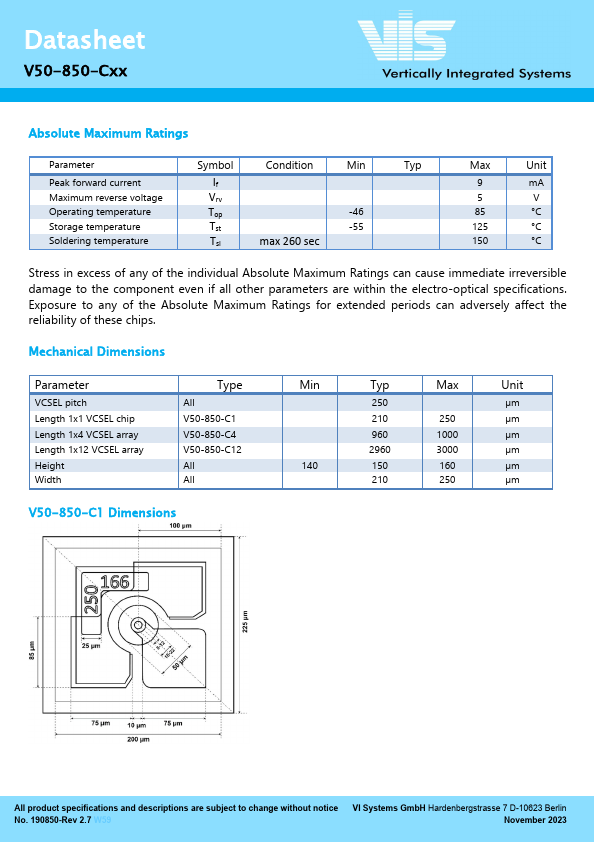

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
V50-850-C12, V50-850-C1
Manufacturer
VIS
File Size
657.11 KB
Datasheet
V50-850-C1-VIS.pdf
Description
VCSEL
Note
This datasheet PDF includes multiple part numbers: V50-850-C12, V50-850-C1.
Please refer to the document for exact specifications by model.
