VM50-850-C4, VM50-850-C1 - VCSEL

VIS

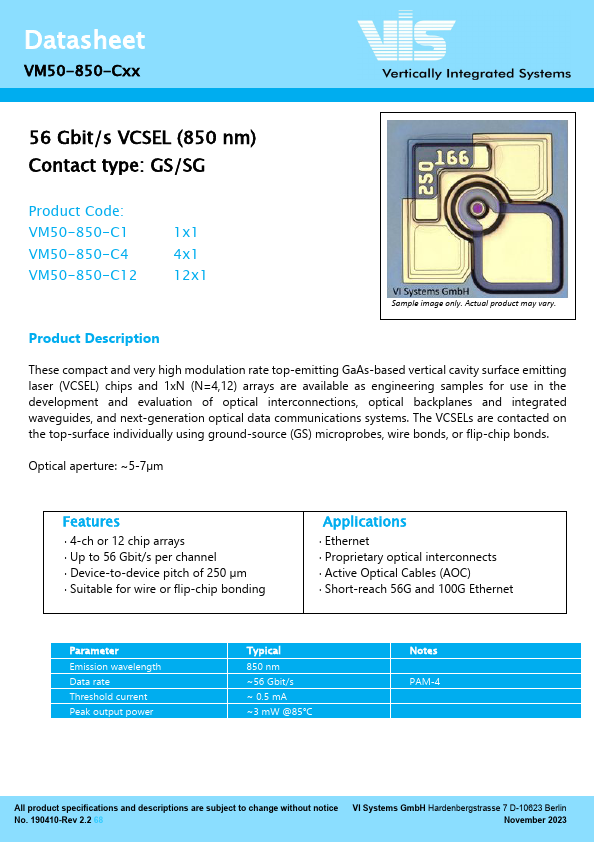

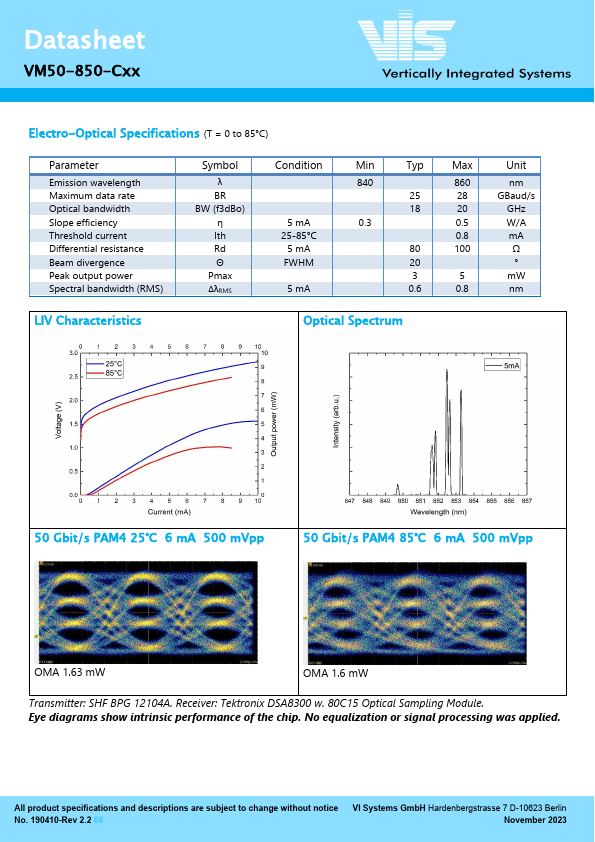

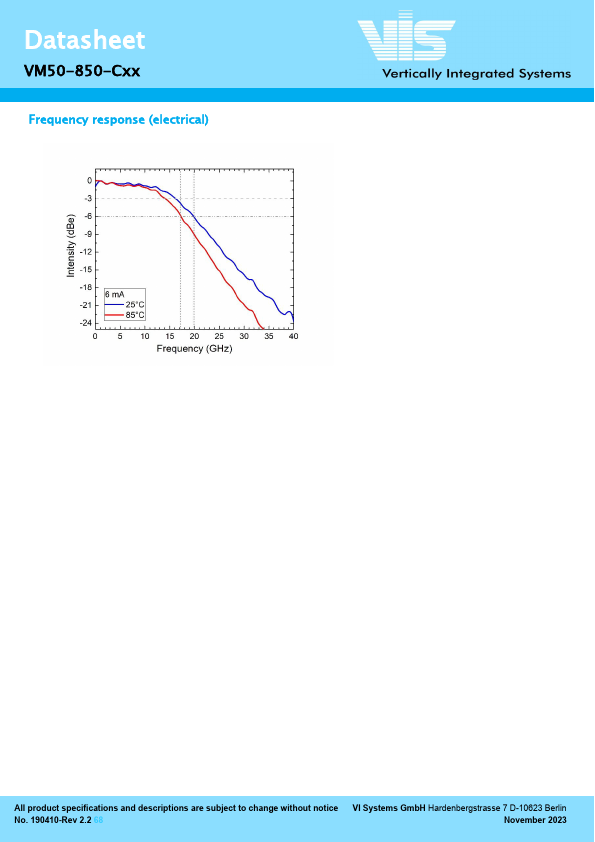

VM50-850-C4 Datasheet Preview — This datasheet PDF includes multiple part numbers: VM50-850-C4, VM50-850-C1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	VM50-850-C4, VM50-850-C1
Manufacturer	VIS
File Size	871.60 KB
Description	VCSEL
Datasheet	VM50-850-C1-VIS.pdf
Note	This datasheet PDF includes multiple part numbers: VM50-850-C4, VM50-850-C1. Please refer to the document for exact specifications by model.

VM50-850-C4 Product details

Description

These compact and very high modulation rate top-emitting GaAs-based vertical cavity surface emitting laser (VCSEL) chips and 1xN (N=4,12) arrays are available as engineering samples for use in the development and evaluation of optical interconnections, optical backplanes and integrated waveguides, and next-generation optical data communications systems.

Features

4-ch or 12 chip arrays.
Up to 56 Gbit/s per channel.
Device-to-device pitch of 250 µm.
Suitable for wire or flip-chip bonding.
