VS1010c - Mp3 Player IC

Datasheet Summary

Description

15 5.1 LQFP-48 Package

.

.

.

16 Version: 0.09, 2018-09-28 2 PRELIMINARY VS1010c Datasheet CONTENTS 5.3 LFGA-68 Package

Features

  • Stereo 16-bit Mems Mic audio interface.
  • Two 24-bit audio DACs.
  • Stereo earphone driver for 30 Ω load.
  • 12-bit ADC, 3-7 external inputs.
  • Operation from single power supply, three programmable internal regulators Digital Hardware Features.
  • 75 MIPS VS_DSP4 processor core.
  • 16 KiB program RAM (4 KiWord).
  • 64 KiB data RAM (2×16 KiWord).
  • USB 2.0 Hi-Speed (480 Mbit/s) Device / Host.
  • I2S and SPDIF digital audio interf.

📥 Download Datasheet

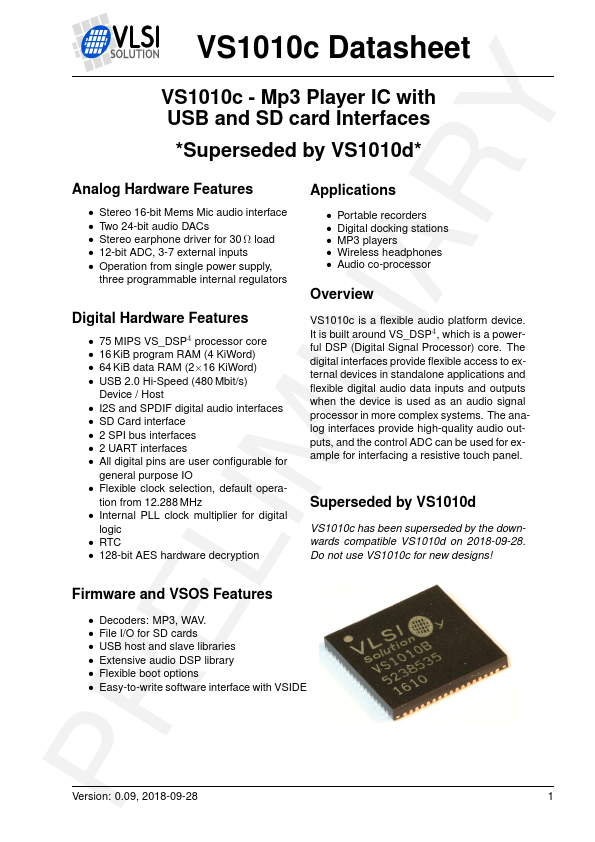

Datasheet preview – VS1010c

Datasheet Details

Part number VS1010c
Manufacturer VLSI
File Size 1.24 MB
Description Mp3 Player IC
Datasheet download datasheet VS1010c Datasheet

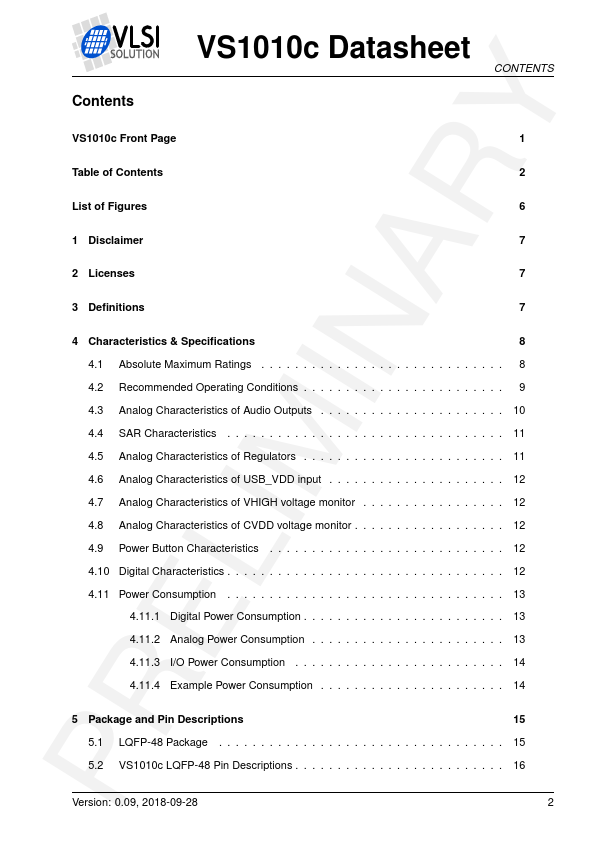

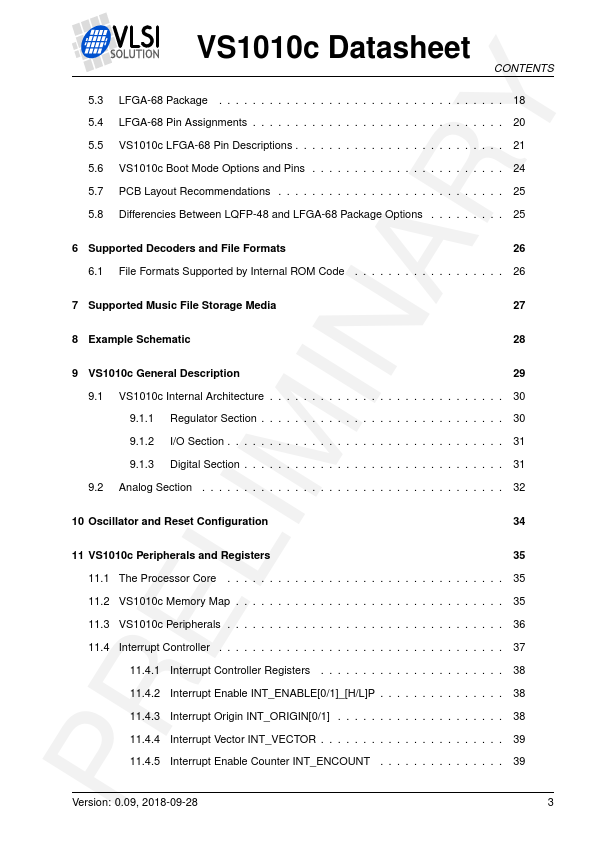

Additional preview pages of the VS1010c datasheet.
