VS1010d - Mp3 Player IC

Datasheet Summary

Description

15 5.1 LQFP-48 Package

.

.

.

17 Version: 0.41, 2022-10-05 2 PRELIMINARY VS1010d Datasheet CONTENTS 5.3 QFN-68 Package, Obsoleted, Do Not Use for New D

Features

  • Stereo 16-bit Mems Mic audio interface.
  • Two 24-bit audio DACs.
  • Stereo earphone driver for 30 Ω load.
  • 12-bit ADC, 3-7 external inputs.
  • Operation from single power supply, three programmable internal regulators Digital Hardware Features.
  • 75 MIPS VS_DSP4 processor core.
  • 16 KiB instruction RAM (4 KiWord).
  • Up to 64 KiB virtual instruction RAM using built-in translation lookaside buffer.
  • 64 KiB data RAM (2×16 KiWord).

📥 Download Datasheet

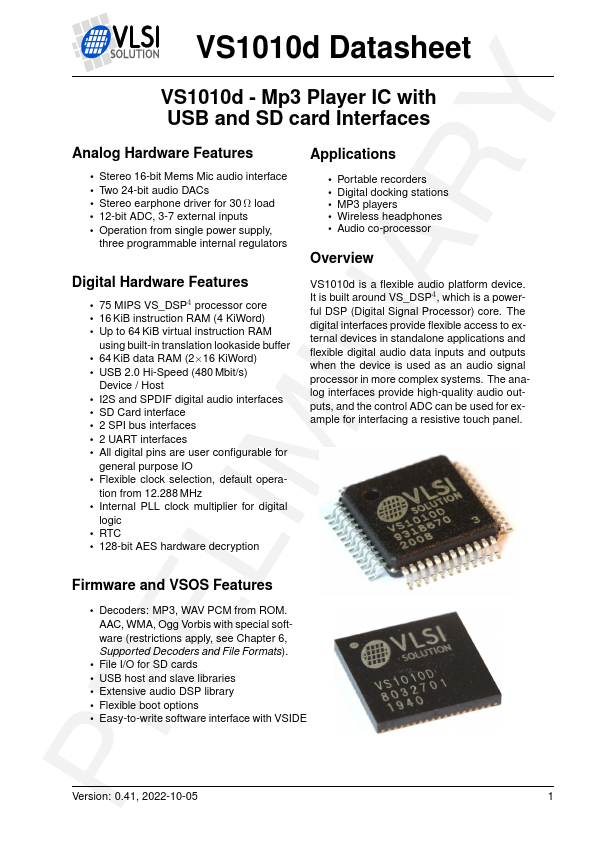

Datasheet preview – VS1010d

Datasheet Details

Part number VS1010d
Manufacturer VLSI
File Size 1.72 MB
Description Mp3 Player IC
Datasheet download datasheet VS1010d Datasheet

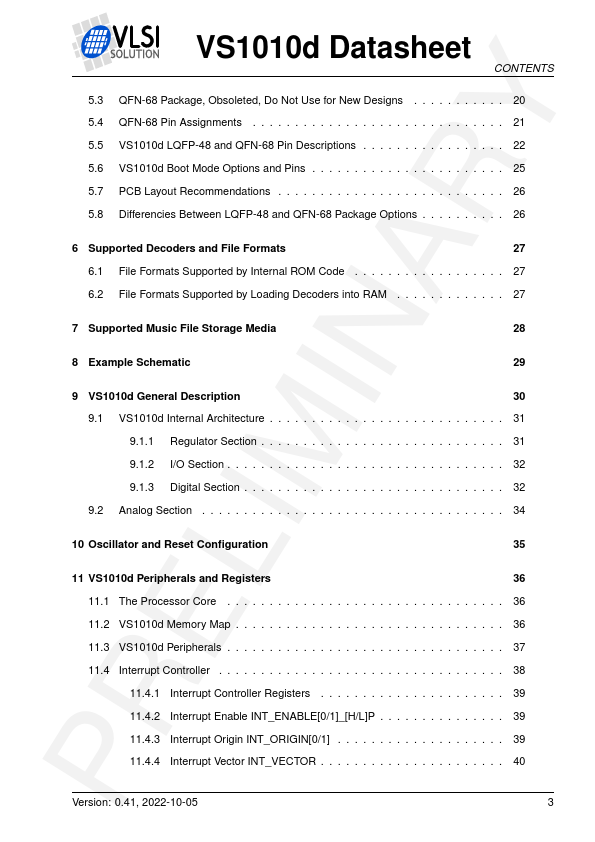

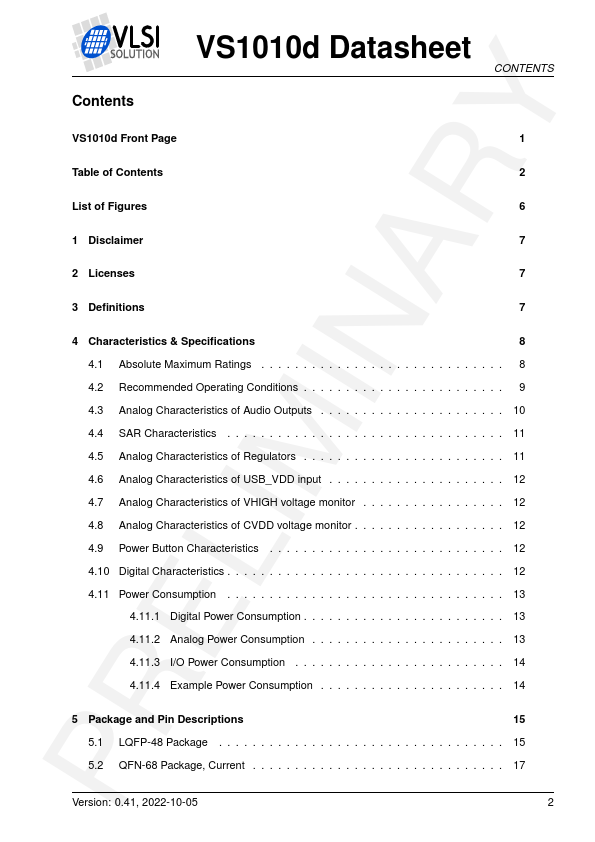

Additional preview pages of the VS1010d datasheet.
