VS23S010D-S - 1-Megabit SPI SRAM

VLSI

📥 Download Datasheet

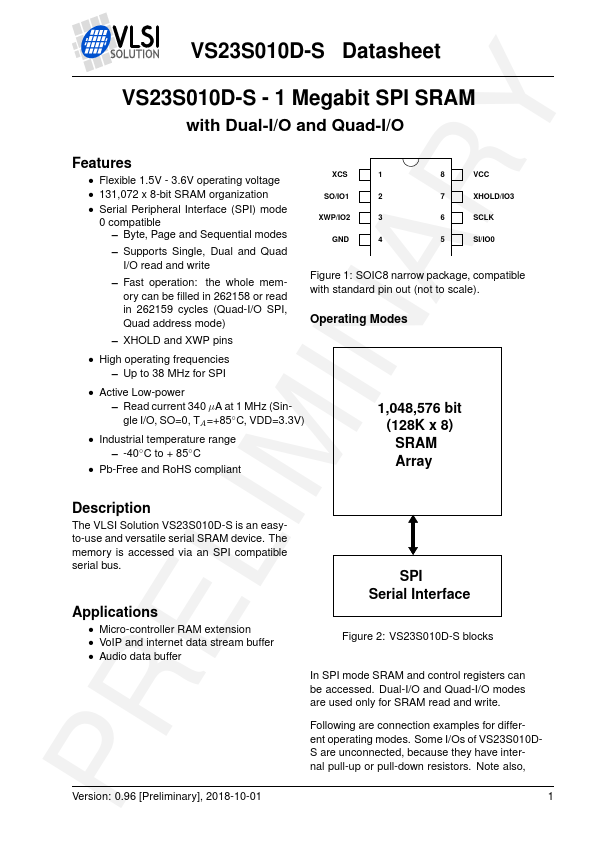

VS23S010D-S Datasheet Preview — Preview of VS23S010D-S PDF

Datasheet Details

Part number	VS23S010D-S
Manufacturer	VLSI
File Size	578.62 KB
Description	1-Megabit SPI SRAM
Datasheet	VS23S010D-S-VLSI.pdf

VS23S010D-S Product details

Description

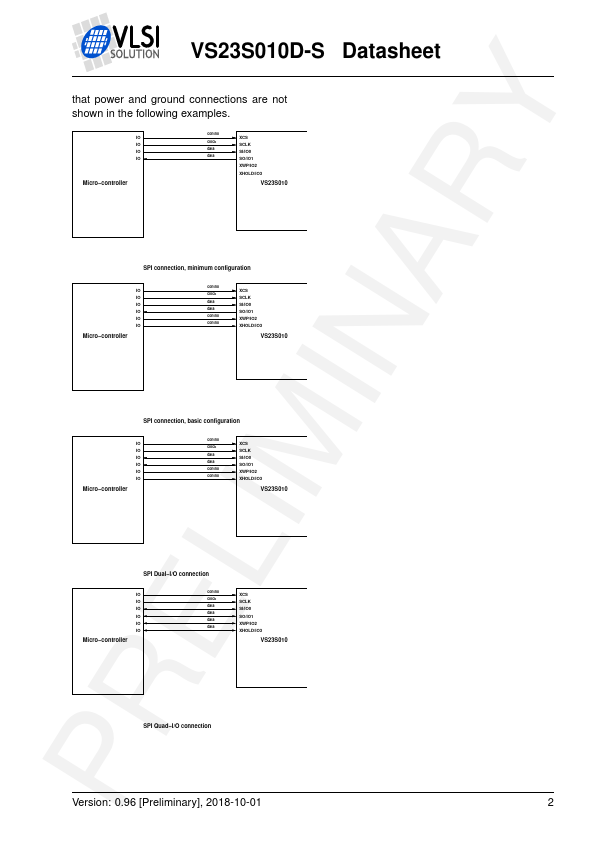

The VLSI Solution VS23S010D-S is an easyto-use and versatile serial SRAM device. Micro-controller RAM extension VoIP and internet data stream buffer Audio data buffer SPI Serial Interface Figure 2: VS23S010D-S blocks In SPI mode SRAM and control registers can be accessed.Dual-I/O and Quad-I/O modes are used only for SRAM read and write.Following are connection examples for different operating m

Features

Flexible 1.5V - 3.6V operating voltage.
131,072 x 8-bit SRAM organization.
Serial Peripheral Interface (SPI) mode 0 compatible.
Byte, Page and Sequential modes.
Supports Single, Dual and Quad I/O read and write.
Fast operation: the whole memory can be ﬁlled in 262158 or read in 262159 cycles (Quad-I/O SPI, Quad address mode) XCS 1 SO/IO1 2 XWP/IO2 3 GND 4 8 VCC 7 XHOLD/IO3 6 SCLK 5 SI/IO0 Figure 1: SOIC8 narrow package, comp.
