1102C - (1102xC - 1110xC) Single Phase Bridge

VMI

1102C (1102xC - 1110xC) Single Phase Bridge by VMI - Datasheet Preview — Datasheet preview – 1102C

Datasheet Details

Part number	1102C
Manufacturer	VMI
File Size	67.09 KB
Description	(1102xC - 1110xC) Single Phase Bridge
Datasheet	1102C Datasheet
Additional preview pages of the 1102C datasheet.

📁 Similar Datasheet

1102W - LED (STANLEY ELECTRIC)
1100 - Semi-Custom IC (Cherry Semiconductor)
1100-8-104-01 - Header Connector (Methode Electronics)
1100-8-1xx-01 - Header Connector (Methode Electronics)
11016 - PRN110 (California Micro Devices)
1105W - LED (STANLEY)
1106_XB15A402 - PIN DIODE (Torex Semiconductor)
1107PV1 - ADC (Venta)
1108-8-1xx-01 - Header Connector (Methode Electronics)
110BYG007 - Stepper Motor (KySan)

Other Datasheets by VMI

1102B - (1102xB - 1110xB) Single Phase Bridge
1102D - (1102xD - 1110xD) Single Phase Bridge
1102E - (1102xE - 1110xE) Single Phase Bridge
1102F - (1102xF - 1110xF) Single Phase Bridge
1102FB - (1102xB - 1110xB) Single Phase Bridge
1102FC - (1102xC - 1110xC) Single Phase Bridge
1102FD - (1102xD - 1110xD) Single Phase Bridge
1102FE - (1102xE - 1110xE) Single Phase Bridge

Full PDF Text Transcription

Click to expand full text

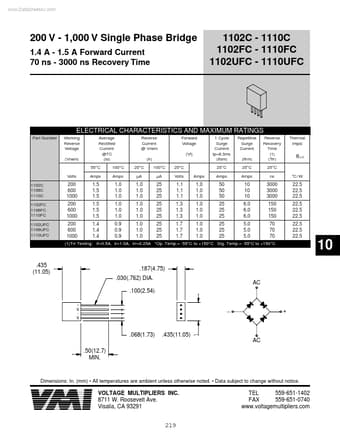

www.DataSheet4U.com 200 V - 1,000 V Single Phase Bridge 1.4 A - 1.5 A Forward Current 70 ns - 3000 ns Recovery Time 1102C - 1110C 1102FC - 1110FC 1102UFC - 1110UFC ELECTRICAL CHARACTERISTICS AND MAXIMUM RATINGS Part Number Working Reverse Voltage (Vrwm) Average Rectified Current @TC (Io) 55°C Volts 1102C 1106C 1110C 1102FC 1106FC 1110FC 1102UFC 1106UFC 1110UFC Amps 100°C Amps Reverse Current @ Vrwm (Ir) 25°C µA 100°C µA 25°C Volts Amps Forward Voltage (Vf) 1 Cycle Surge Current tp=8.3ms (Ifsm) 25°C Amps Repetitive Surge Current (Ifrm) 25°C Amps Reverse Recovery Time (1) (Trr) 25°C ns °C / W Thermal Impd. uJ-C 200 600 1000 200 600 1000 200 600 1000 1.5 1.5 1.5 1.5 1.5 1.5 1.4 1.4 1.4 1.0 1.0 1.0 1.0 1.0 1.0 0.9 0.9 0.9 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.
