1106UFB Datasheet - VMI

1106UFB (1102xB - 1110xB) Single Phase Bridge

www.DataSheet4U.com 200 V - 1,000 V Single Phase Bridge 1.4 A - 1.5 A Forward Current 70 ns - 3000 ns Recovery Time 1102B - 1110B 1102FB - 1110FB 1102UFB - 1110UFB ELECTRICAL CHARACTERISTICS AND MAXIMUM RATINGS Part Number Working Reverse Voltage (Vrwm) Average Rectified Current @TC (Io) 55°C Volts 1102B 1106B 1110B 1102FB 1106FB 1110FB 1102UFB 1106UFB 1110UFB Amps 100°C Amps Reverse Current @ Vrwm (Ir) 25°C µA 100°C µA 25°C Volts Amps Forward Voltage (Vf) 1 Cycle Surge Current tp=8.3ms (Ifsm.

1106UFB Datasheet (74.33 KB)

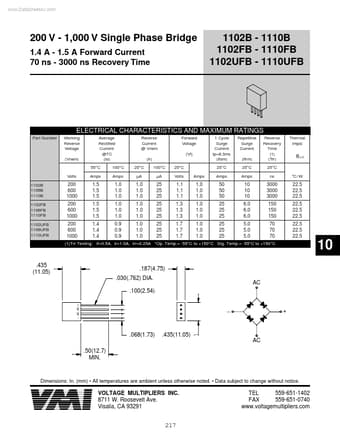

Preview of 1106UFB PDF
1106UFB Datasheet Preview Page 2

Datasheet Details

Part number:

1106UFB

Manufacturer:

VMI

File Size:

74.33 KB

Description:

(1102xb - 1110xb) single phase bridge.
