Z100SG Spice Model

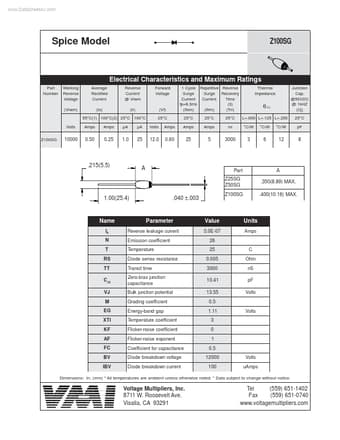

www.DataSheet4U.com Spice Model Z100SG Electrical Characteristics and Maximum Ratings Part Number Working Reverse Voltage (Vrwm) Average Rectified Current (Io) Reverse Current @ Vrwm (Ir) Forward Voltage 1 Cycle Repetitive Reverse Surge Surge Recovery Current Current Time tp=8.3ms (3) (Ifsm) (Ifrm) (Trr) 25°C Amps 25°C Amps 25°C ns Thermal Impedance Junction Cap. @50VDC @ 1kHZ (Cj) 25°C pF (Vf) 25°C Volts Amps θJ-L L=.000 L=.125 L=.250 °C/W °C/W °C/W 55°C(1) 100°C(2) 25°C 100°C Volts Z100S.

Z100SG Datasheet (65.22 KB)

Z100SG Datasheet Preview — Preview of Z100SG PDF

Datasheet Details

Part number:

Z100SG

Manufacturer:

VMI

File Size:

65.22 KB

Description:

Spice model.
