MSB-1505, MSB-0505 1 WATT DC/DC CONVERTER

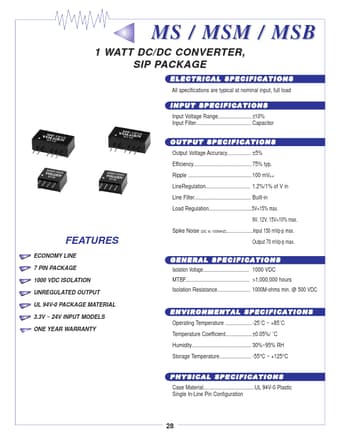

📥 Download Datasheet Datasheet Preview Page 1

Description

MS / MSM / MSB 1 WATT DC/DC CONVERTER, SIP PACKAGE ELECTRICAL SPECIFICATIONS All specifications are typical at nominal input, full load INPUT SPECIFIC.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MSB-1505, MSB-0505. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MSB-1505, MSB-0505
Manufacturer
VOLGEN
File Size
231.38 KB
Datasheet
MSB-0505-VOLGEN.pdf
Description
1 WATT DC/DC CONVERTER
Note
This datasheet PDF includes multiple part numbers: MSB-1505, MSB-0505.
Please refer to the document for exact specifications by model.

Features

* ECONOMY LINE 7 PIN PACKAGE 1000 VDC ISOLATION UNREGULATED OUTPUT UL 94V-0 PACKAGE MATERIAL 3.3V ~ 24V INPUT MODELS ONE YEAR WARRANTY OUTPUT SPECIFICATIONS Output Voltage Accuracy ±5% Efficiency 75% typ. Ripple 100 mVp-p LineRegulation 1.2%/1% of V in Line Filter Built-in Load Regulation5V=15% max.
