1N5221BUR-1 - 500mW Zener Diode

Product Overview

VPT

📥 Download Datasheet

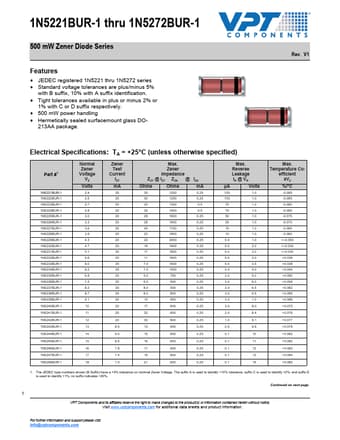

1N5221BUR-1 500mW Zener Diode by VPT - Datasheet Preview — Datasheet preview – 1N5221BUR-1

Datasheet Details

Part number	1N5221BUR-1
Manufacturer	VPT
File Size	577.01 KB
Description	500mW Zener Diode
Datasheet	1N5221BUR-1 Datasheet

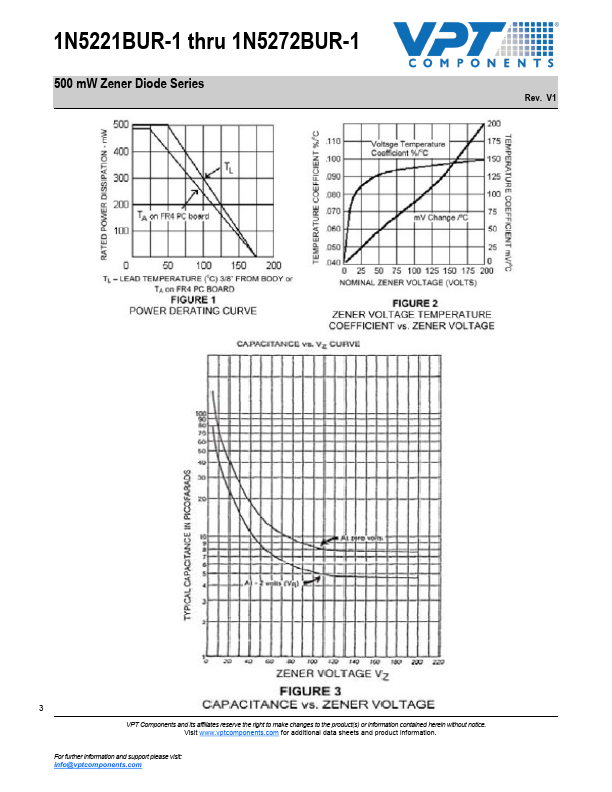

Additional preview pages of the 1N5221BUR-1 datasheet.

Product details

Features

JEDEC registered 1N5221 thru 1N5272 series.
Standard voltage tolerances are plus/minus 5% with B suffix, 10% with A suffix identification.
Tight tolerances available in plus or minus 2% or 1% with C or D suffix respectively.
500 mW power handling.
Hermetically sealed surfacemount glass DO- 213AA package. Rev. V1 Electrical Specifications: TA = +25°C (unless otherwise specified) Part #1 1N5221BUR-1 1N5222BUR-1 1N5223BUR-1 1N5224BUR-1 1N5225BUR-1.
