1N5242BUR-1, 1N5221BUR-1 500mW Zener Diode

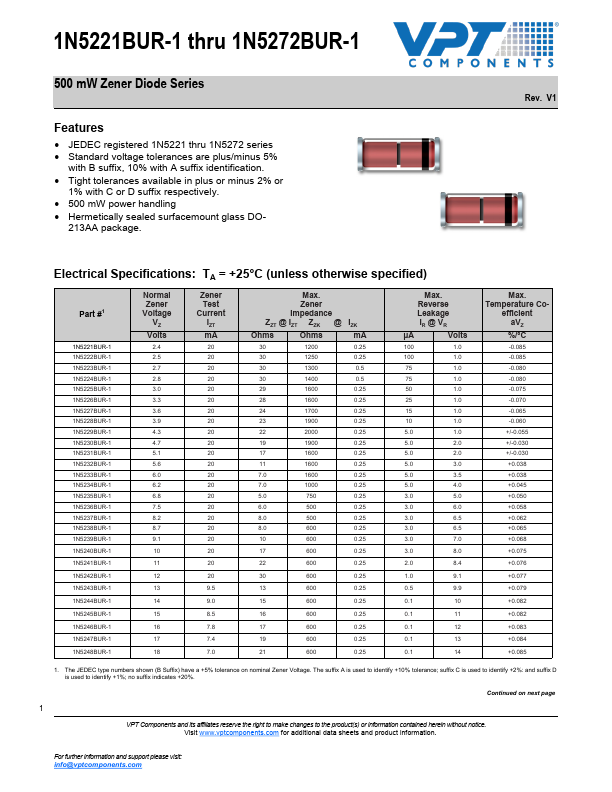

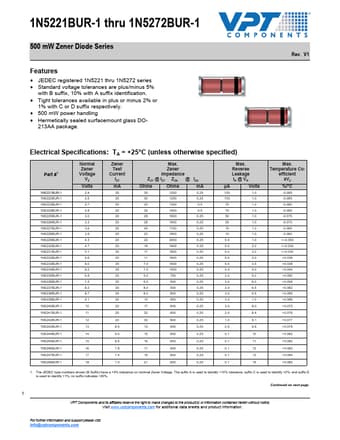

📥 Download Datasheet  Datasheet Preview Page 1

Description

1N5221BUR-1 thru 1N5272BUR-1 500 mW Zener Diode Series .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5242BUR-1, 1N5221BUR-1. Please refer to the document for exact specifications by model.

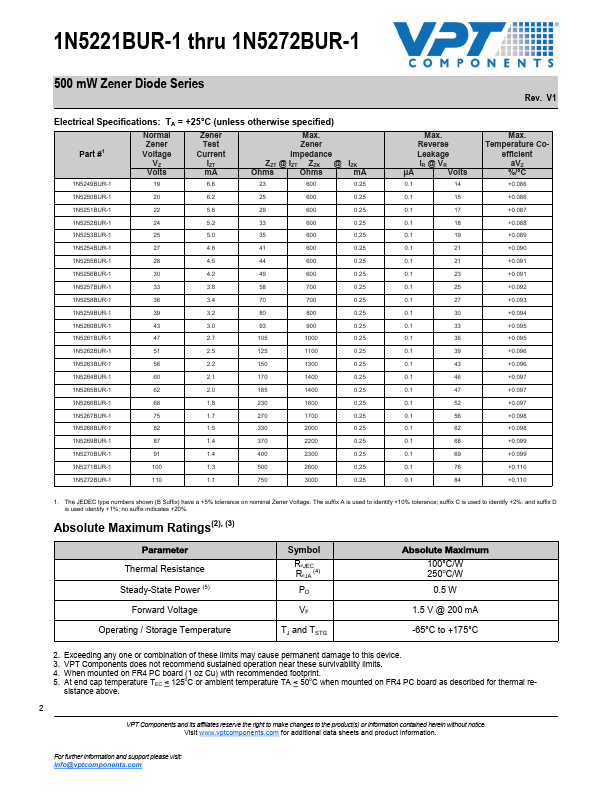

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
1N5242BUR-1, 1N5221BUR-1
Manufacturer
VPT
File Size
577.01 KB
Datasheet
1N5221BUR-1-VPT.pdf
Description
500mW Zener Diode
Note
This datasheet PDF includes multiple part numbers: 1N5242BUR-1, 1N5221BUR-1.
Please refer to the document for exact specifications by model.

Features

* JEDEC registered 1N5221 thru 1N5272 series
* Standard voltage tolerances are plus/minus 5% with B suffix, 10% with A suffix identification.
* Tight tolerances available in plus or minus 2% or 1% with C or D suffix respectively.
* 500 mW power handling
* Herm
