1N6309

0.5W Zener Voltage Regulators

VPT

1N6309 Features

* Zener Voltage Regulators: Axial = no suffix MELF = US, UB

* JAN, JANTX, JANTXV and JANS available per MIL-PRF-19500/533

* Non-Cavity Glass Package

* Internal Metallurgical Bonds: "Category III” for 1N6309 - 1N6320 “Category I” for 1N6321 - 1N6349 Rev. V3 MELF(UB) M

1N6309 General Description

This Zener voltage regulator series is military qualified to MIL-PRF-19500/533 and is ideal for high reliability applications where a failure cannot be tolerated. These industry-recognized 0.5 W zener voltage regulators are hermetically sealed with voidless-glass construction using an internal metal.

1N6309 Datasheet (745.79 KB)

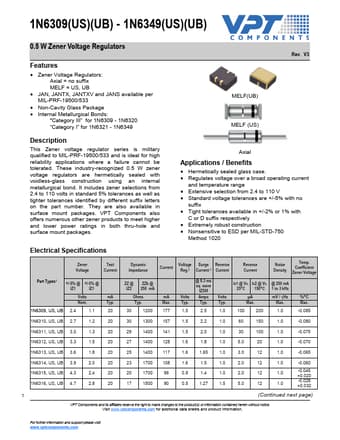

1N6309 Datasheet Preview — Preview of 1N6309 PDF

Datasheet Details

Part number:

1N6309

Manufacturer:

VPT

File Size:

745.79 KB

Description:

0.5w zener voltage regulators.
