CD5518B

Zener Diode

VPT

CD5518B Features

* All Junctions Completely Protected with Silicon Dioxide

* 0.5 W Capability with Proper Heat Sinking

* Electrically Equivalent to 1N5518B - 1N5546B

* No suffix indicates 21 mil square die size

* J15 suffix indicates 13.5 mil square die size Description These

CD5518B General Description

These 0.5 W zener diodes are electrically equivalent to the 1N5518B - 1N5546B series diodes. They are compatible with all wire bonding and die attach techniques with the exception of solder reflow. These diodes are also available in JANHC and JANKC per MIL-PRF-19500/437. Rev. V5 Die See dimensions .

CD5518B Datasheet (695.30 KB)

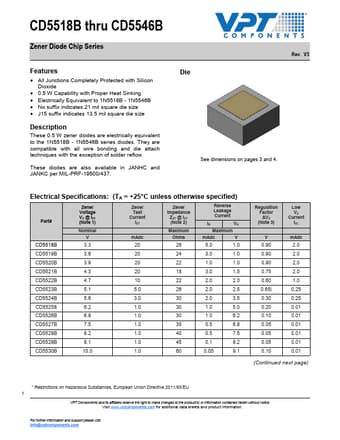

CD5518B Datasheet Preview — Preview of CD5518B PDF

Datasheet Details

Part number:

CD5518B

Manufacturer:

VPT

File Size:

695.30 KB

Description:

Zener diode.
