DVMH28 Datasheet - VPT

DVMH28 HIGH RELIABILITY HYBRID EMI FILTERS

The DVMH series of hybrid EMI filters is operable over the full military (-55 °C to +125 °C) temperature range with no power derating. The DVMH EMI filter is designed to filter conducted emissions of two DVHF or one DVTR series DC-DC converters. These filters are designed and manufactured in a facil.

DVMH28 Features

* High Reliability

* Wide Input Voltage Range: 0 to 50 Volts per MIL-STD-704

* Up to 2.0 Amp Maximum Current

* 55 dB Minimum Attenuation at 500 kHz

* Industry Standard Pinout

* High Input Transient Voltage: 80 Volts for 1 sec per MIL-STD-704A

DVMH28 Datasheet (371.54 KB)

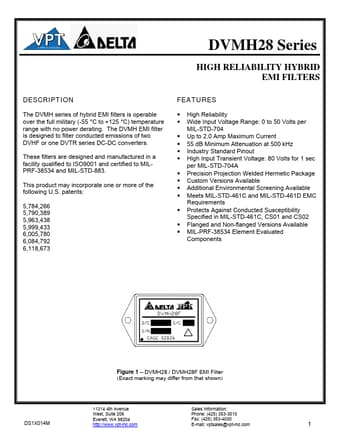

DVMH28 Datasheet Preview — Preview of DVMH28 PDF

Datasheet Details

Part number:

DVMH28

Manufacturer:

VPT

File Size:

371.54 KB

Description:

High reliability hybrid emi filters.
