SCA1020, SCA1000 Datasheet - VTI technologies

SCA1020, SCA1000, (SCA1000 / SCA1020) Accelerometer

Preliminary SCA1000 and SCA1020 Series Accelerometer .

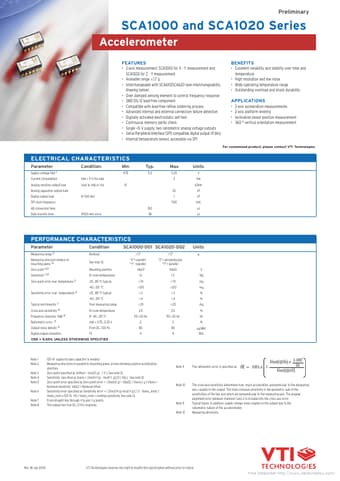

datasheet Preview Page 1 from Datasheet4u.com

SCA1000_VTItechnologies.pdf

SCA1020 Datasheet Preview — This datasheet PDF includes multiple part numbers: SCA1020, SCA1000. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SCA1020, SCA1000

Manufacturer:

VTI technologies

File Size:

401.00 KB

Description:

(SCA1000 / SCA1020) Accelerometer

Note:

This datasheet PDF includes multiple part numbers: SCA1020, SCA1000.
Please refer to the document for exact specifications by model.

Features

* 2-axis measurement: SCA1000 for X - Y measurement and SCA1020 for Z - Y measurement
* Available range ±1.7 g
* Interchangeable with SCA610/SCA620 (see interchangeability drawing below)
* Over damped sensing element to control frequency response
* SMD DIL-12

Applications

* 2-axis acceleration measurements
* 2-axis platform leveling
* Inclination based position measurement
* 360 ° vertical orientation measurement For customized product, please contact VTI Technologies ELECTRICAL CHARACTERISTICS Parameter Supply voltage Vdd (1 Current
