SCR1100-D04 - SINGLE AXIS GYROSCOPE

General Description

SCR1100-D04 is a single axis high performance gyroscope.

It is part of VTI's high performance gyro family and it has the same gyro section as the combined gyro acceleration product SCC1300-D02.

Key Features

  • ±300 º/s angular rate measurement range.
  • Angular rate measurement around X axis.
  • Angular rate sensor exceptionally insensitive to mechanical vibrations and shocks.
  • Superior bias instability for MEMS gyroscopes (.

📥 Download Datasheet

Datasheet Details

Part number SCR1100-D04
Manufacturer VTI technologies
File Size 700.68 KB
Description SINGLE AXIS GYROSCOPE
Datasheet download datasheet SCR1100-D04 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SCR10-17xx GEAR MOTOR Citizen Micro
SCR10-25xx GEAR MOTOR Citizen Micro
SCR12-13xx GEAR MOTOR Citizen Micro
SCR12-18xx GEAR MOTOR Citizen Micro
SCR12-26xx GEAR MOTOR Citizen Micro

Other Datasheets by VTI technologies

Part Number Description
SCR1100-D02 SINGLE AXIS GYROSCOPE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

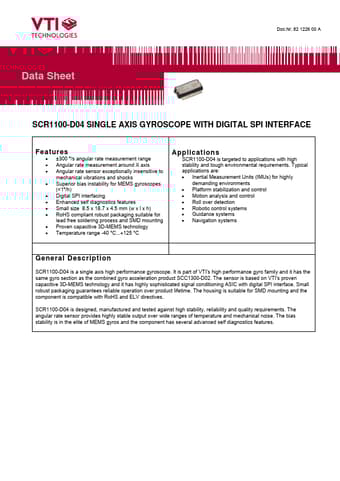

Data Sheet Doc.Nr. 82 1226 00 A SCR1100-D04 SINGLE AXIS GYROSCOPE WITH DIGITAL SPI INTERFACE Features • ±300 º/s angular rate measurement range • Angular rate measurement around X axis • Angular rate sensor exceptionally insensitive to mechanical vibrations and shocks • Superior bias instability for MEMS gyroscopes (<1º/h) • Digital SPI interfacing • Enhanced self diagnostics features • Small size 8.5 x 18.7 x 4.5 mm (w x l x h) • RoHS compliant robust packaging suitable for lead free soldering process and SMD mounting • Proven capacitive 3D-MEMS technology • Temperature range -40 °C...+125 °C Applications SCR1100-D04 is targeted to applications with high stability and tough environmental requirements.
