VT73LVP10M

TTL to Differential LVPECL Translator

VT73LVP10M Features

* =

* =

* =

* = 700ps typical propagation delay Differential LVPECL outputs Flow-through pinout -40 C to +85 C operating temperature range o o

* =

* =

* = 5V - tolerant inputs ESD rating >2000V (Human Body Model) or >200V (Machine Model) Available a

VT73LVP10M General Description

The Vaishali VT73LVP10 is a general purpose TTL (CMOS) to differential LVPECL translator, with active-LOW enable. The device operates from a single 3.3V supply. When /EN is LOW or open circuit, the device accepts an LVTTL or LVCMOS input and provides differential LVPECL outputs referenced to the pos.

VT73LVP10M Datasheet (69.93 KB)

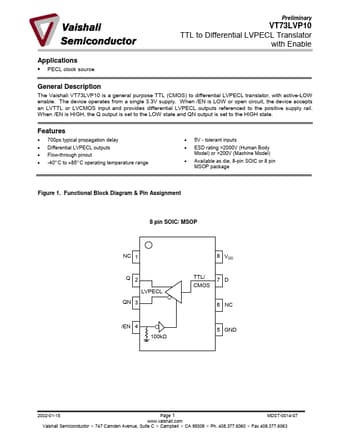

Preview of VT73LVP10M PDF

Datasheet Details

Part number:

VT73LVP10M

Manufacturer:

Vaishali Semiconductor

File Size:

69.93 KB

Description:

Ttl to differential lvpecl translator.
